Kennametal

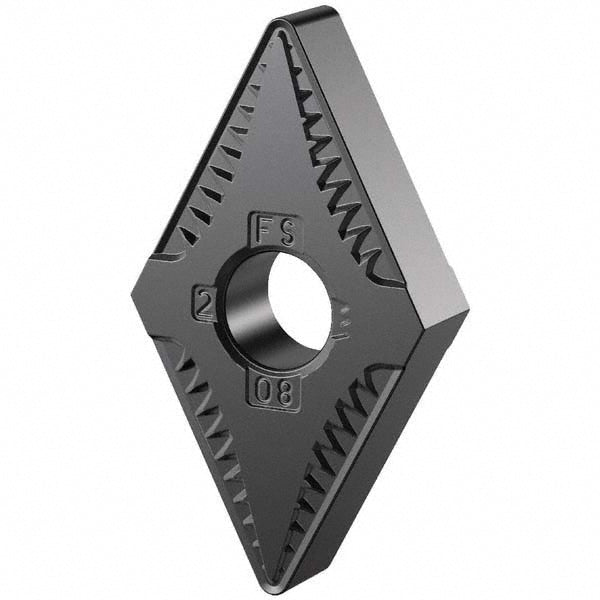

DNGG150404FS Carbide Insert, Grade KCS10B, AlTiN - Kennametal 6756008
MFR# 6756008ISO/ANSI# DNGG150404Series KENLOC
$43.06List $52.57
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCS10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 6756008 is a DNGG150404FS carbide indexable insert, grade KCS10B, AlTiN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeDNGG431
Ansi size code431
Chip breakerFS
Chip breaker operationFinishing
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.2031
Included angle55
Industry standard numberDNGG431FS
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code431
Insert styleDNGG
Insert thickness in3/16
Iso codeDNGG150404FS
Iso insert codeDNGG150404
Iso size code150404
Length range0.7000 - 10.0000
Manufacturers catalog number6756008
Manufacturer gradeKCS10B
Material gradeS10
Maximum depth of cut0.4065
Maximum depth of cut frac in13/32
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle12
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
