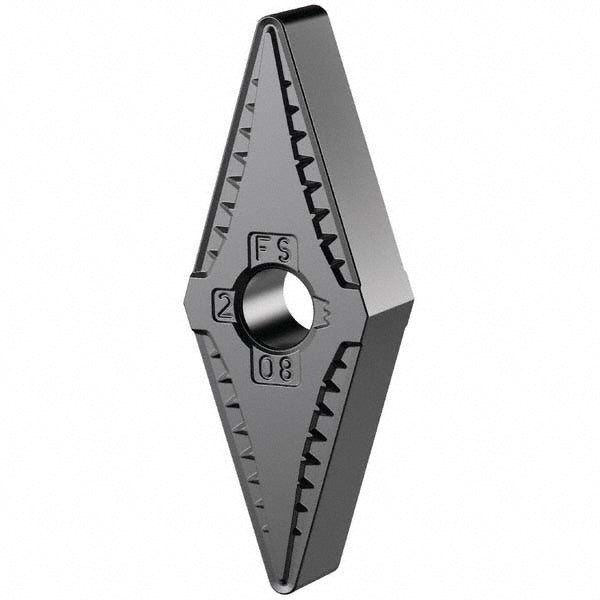

VNGG160401FS Carbide Insert, Grade KCS10B, AlTiN - Kennametal 6756014
MFR# 6756014ISO/ANSI# VNGG160401Series KENLOC
$33.36List $40.72
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCS10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 6756014 is a VNGG160401FS carbide indexable insert, grade KCS10B, AlTiN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeVNGG3302
Ansi size code3302
Chip breakerFS
Chip breaker operationFinishing
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0039
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1500
Included angle35
Industry standard numberVNGG3302FS
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code3302
Insert styleVNGG
Insert thickness in3/16
Iso codeVNGG160401FS
Iso insert codeVNGG160401
Iso size code160401
Length range0.7000 - 10.0000
Manufacturers catalog number6756014
Manufacturer gradeKCS10B
Material gradeS10
Maximum depth of cut0.4354
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle12
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
