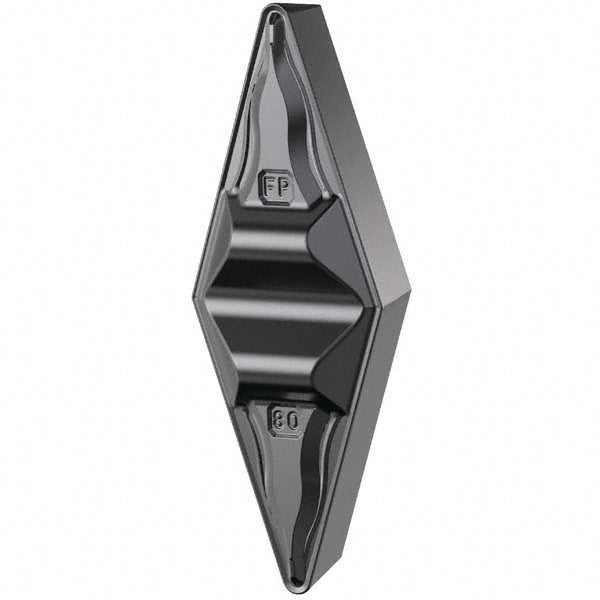

VCGR160404FP Carbide Insert, Grade KCS10B, AlTiN - Kennametal 6756041
MFR# 6756041ISO/ANSI# VCGR160404Series Top Notch
$38.71List $47.25
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCS10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 6756041 is a VCGR160404FP carbide indexable insert, grade KCS10B, AlTiN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeVCGR331
Ansi size code331
Chip breakerFP
Chip breaker operationFinishing
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Included angle35
Industry standard numberVCGR331FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length1.3080
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVCGR
Insert thickness in3/16
Iso codeVCGR160404FP
Iso insert codeVCGR160404
Iso size code160404
Length range0.7000 - 10.0000
Manufacturers catalog number6756041
Manufacturer gradeKCS10B
Material gradeS10
Maximum depth of cut0.4356
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
