Kennametal

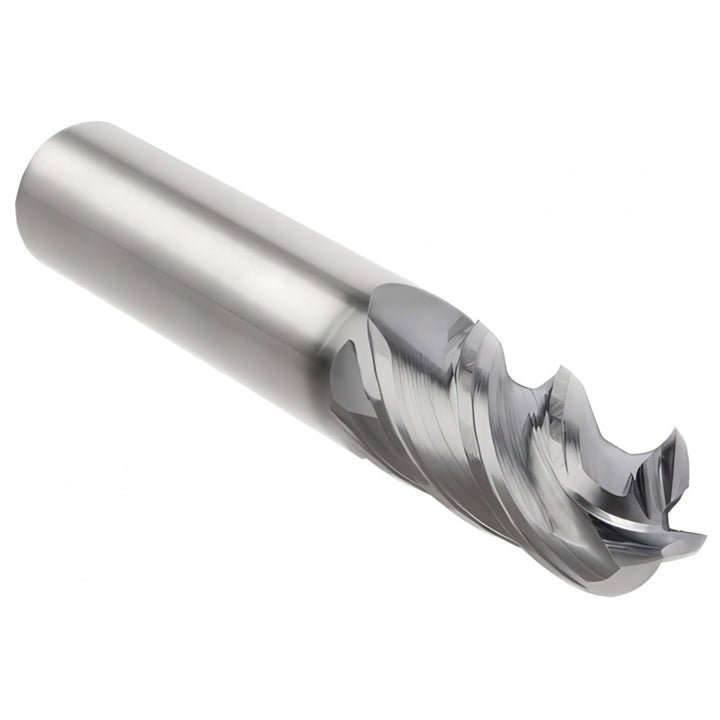

5/8" 4-Flute Solid Carbide Ball End Mill, AlTiN - Kennametal 6767774
MFR# 6767774Cat# H1TE4BN0625R125HASeries H1TEBN..N-L
$269.98List $346.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 6767774 is a 5/8 4-flute Solid Carbide (KCPM15) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1-1/4 length of cut, 3-1/2 overall length. Series H1TEBN..N-L.
Specifications
Additional informationVersatile Solid Carbide End Mill for Steels, Stainless Steel, Cast Iron, & High Temperature Alloys. Harvi I Te Solid Carbide End Mills Cover a Variety of Operations, Including Dynamic Milling, & Extreme Ramping Operations. Harvi I Te Solid Carbide End M
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix styleVariable
Length of cut in1-1/4
Length typeStandard
Manufacturers catalog numberH1TE4BN0625R125HA
Material gradeKCPM15
Material removal typeRoughing & Finishing
Mill diameter in5/8
Neck length0.0000
Nose radius0.3125
Number of flutes4
Overall length in3-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length1.2500
Shank diameter in5/8
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixYes
Variable indexNo
