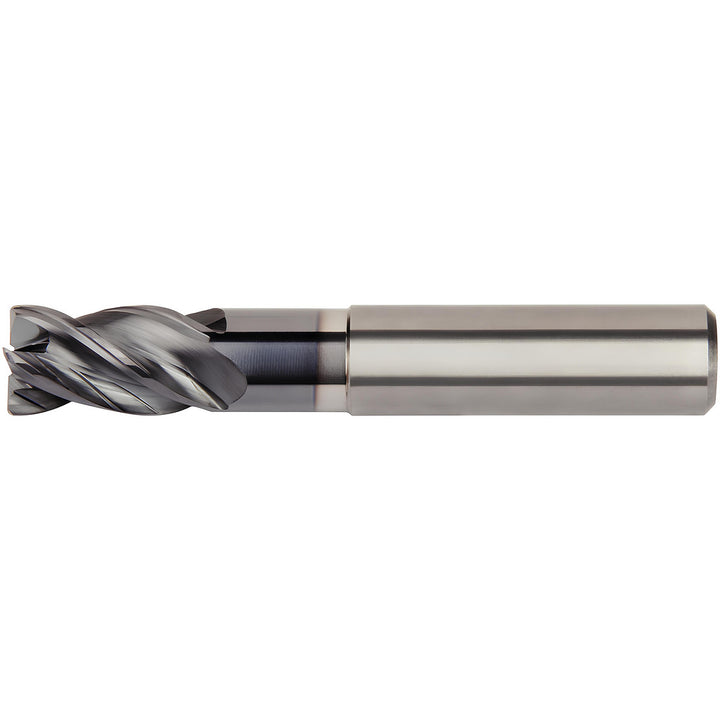

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6767790

Kennametal

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6767790

MFR# 6767790Series H1TE

$162.39List $208.27 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 6767790 is a 3/8 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1/2 length of cut, 4 overall length. Series H1TE.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores
Length of cut in1/2
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in3/8
Neck diameter0.3525
Number of flutes4
Overall length in4
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length in2
Shank diameter in3/8
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
