Kennametal

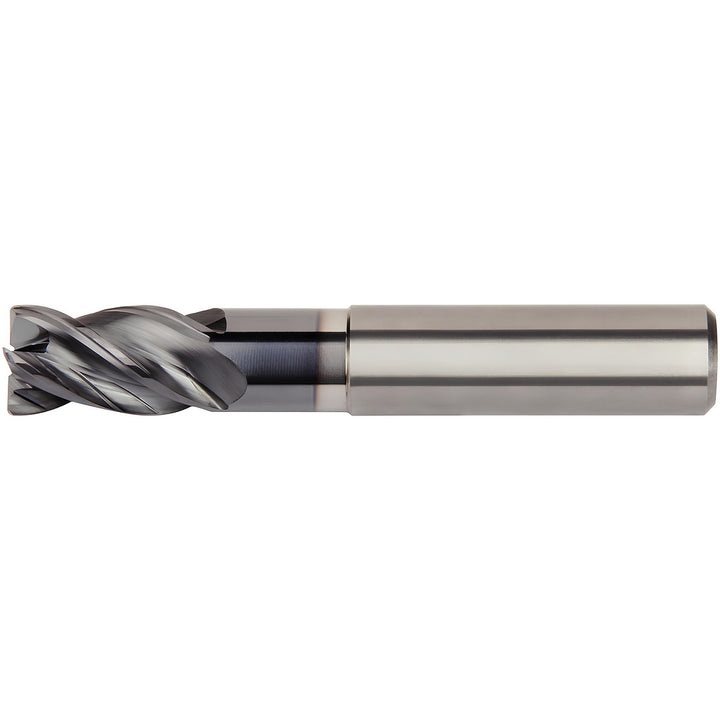

3/4" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6767828
MFR# 6767828Series H1TE
$669.28List $858.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 6767828 is a 3/4 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1 length of cut, 4-1/2 overall length. Series H1TE.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.1200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC-HSK Form A; HC-HSK Form A; Hydraulic Chuck Standard Line Inch KM63XMZ
Length of cut in1
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in3/4
Neck diameter0.7050
Number of flutes4
Overall length in4-1/2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length in2-1/4
Shank diameter in3/4
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
