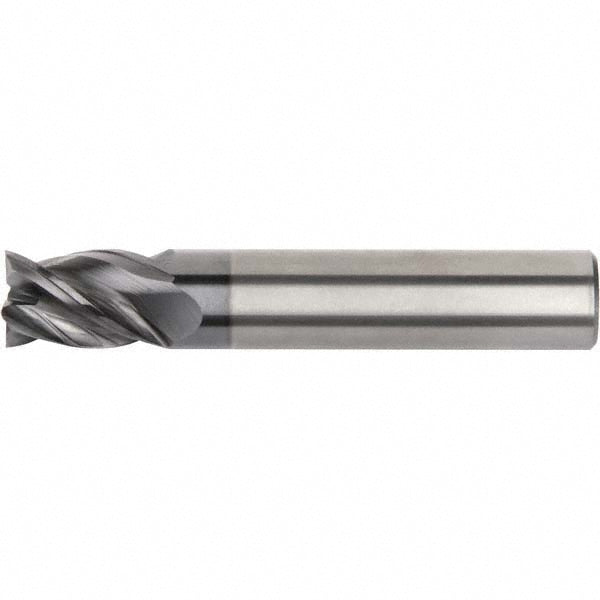

0.0984" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6769559

Kennametal

0.0984" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6769559

MFR# 6769559Series H1TE

$59.56List $76.39 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 6769559 is a 0.0984 4-flute Solid Carbide (KCPM15) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 0.1969 length of cut. Series H1TE.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle36-39
Length of cut0.1969
Material gradeKCPM15
Mill diameter0.0984
Number of flutes4
Overall length (mm)54.00
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials
Shank diameter0.2362
Single or double endSingle
System of measurementMetric
Variable helixYes
Variable indexYes
