Kennametal

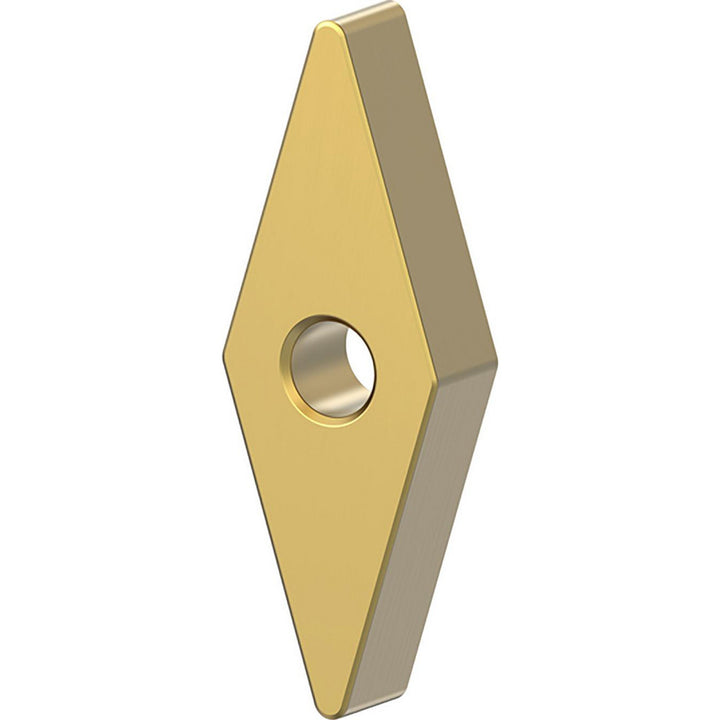

VNGA160404T01020 Ceramic Insert, Grade KYHK15B, AlTiN - Kennametal 6770690
MFR# 6770690ISO/ANSI# VNGA160404Series KENLOC
$24.60List $29.50
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKYHK15B
MaterialCeramic
CoatingAlTiN
Description
The Kennametal 6770690 is a VNGA160404T01020 ceramic indexable insert, grade KYHK15B, AlTiN coated. Suited for cast iron, superalloys & titanium, hard material.
Specifications
Ansi insert codeVNGA331
Ansi size code331
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.1500
Included angle35
Industry standard numberVNGA331T0420
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCeramic
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNGA
Insert thickness in3/16
Iso codeVNGA160404T01020
Iso insert codeVNGA160404
Iso size code160404
Length range0.7000 - 10.0000
Manufacturers catalog number6770690
Manufacturer gradeKYHK15B
Material gradeAlumina TiCN
Maximum depth of cut0.4354
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
