Kennametal

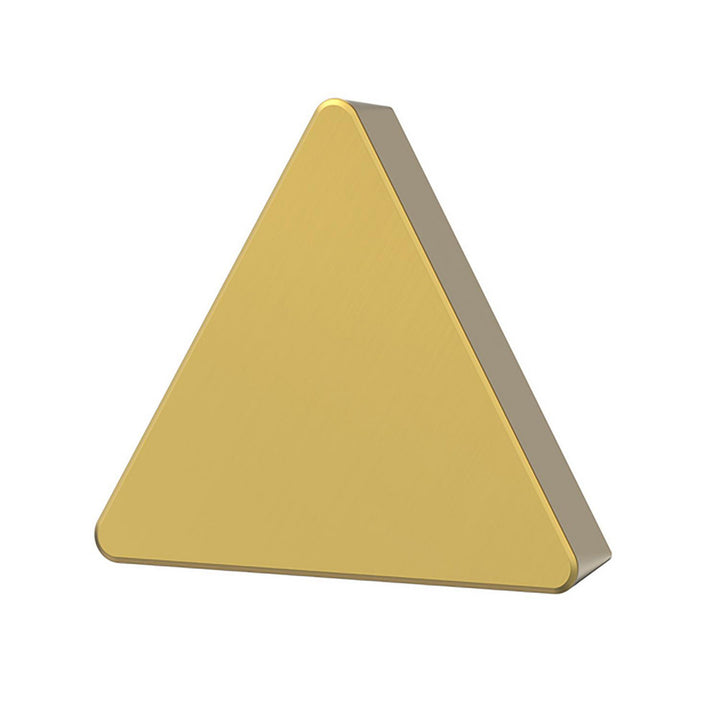

TPGN110308T01020 Ceramic Insert, Grade KYHK15B, AlTiN - Kennametal 6770886
MFR# 6770886ISO/ANSI# TPG110308Series KENDEX
$13.92List $16.67
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKYHK15B
MaterialCeramic
CoatingAlTiN
Description
The Kennametal 6770886 is a TPGN110308T01020 ceramic indexable insert, grade KYHK15B, AlTiN coated. Suited for cast iron, superalloys & titanium, hard material.
Specifications
Ansi insert codeTPG222
Ansi size code222
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Included angle60
Industry standard numberTPG222T0420
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert length0.4331
Insert materialCeramic
Insert shapeT - Triangle
Insert size code222
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN110308T01020
Iso insert codeTPG110308
Iso size code110308
Length range0.4000 - 0.5000
Manufacturers catalog number6770886
Manufacturer gradeKYHK15B
Material gradeAlumina TiCN
Maximum depth of cut0.1442
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCast Iron; Superalloys & Titanium; Hard Material
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.4331
Wiper edgeNo
