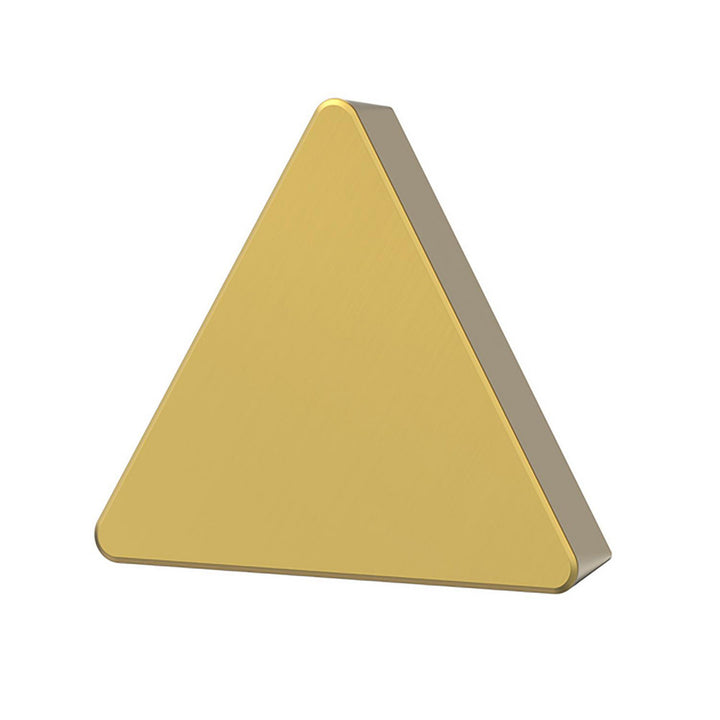

TPGN160308T01020 Ceramic Insert, Grade KYHK15B, AlTiN - Kennametal 6770891
MFR# 6770891ISO/ANSI# TPG322T0420Series KENDEX
$17.97List $21.55
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKYHK15B
MaterialCeramic
CoatingAlTiN
Description
The Kennametal 6770891 is a TPGN160308T01020 ceramic indexable insert, grade KYHK15B, AlTiN coated. Suited for cast iron, superalloys & titanium, hard material.
Specifications
Ansi size code322
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Included angle60
Industry standard numberTPG322T0420
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6496
Insert materialCeramic
Insert shapeT - Triangle
Insert size code322
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN160308T01020
Iso size code160308
Length range0.6000 - 0.6500
Manufacturers catalog number6770891
Manufacturer gradeKYHK15B
Material gradeAlumina TiCN
Maximum depth of cut0.2163
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCast Iron; Superalloys & Titanium; Hard Material
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.6496
Wiper edgeNo
