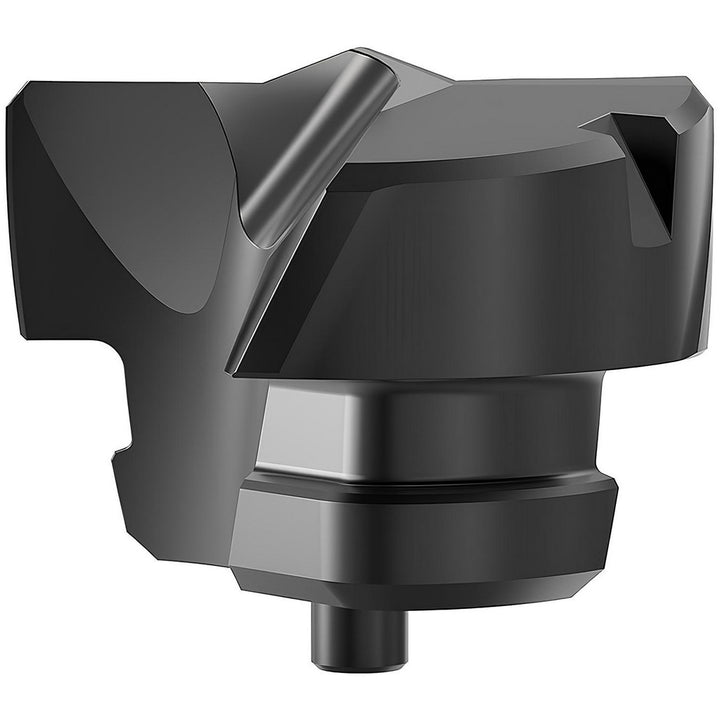

Carbide Insert, Grade KCP15A, AlTiN - Kennametal 6771074
MFR# 6771074Series KTFSS
$109.46List $125.15
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKCP15A
CoatingAlTiN
Description
The Kennametal 6771074 is a carbide indexable insert, grade KCP15A, AlTiN coated. Suited for steel, stainless steel, cast iron.
Specifications
ApplicationsDrilling
Coating finishAlTiN
Coating processPVD
Coolant throughNo
Cutting diameter0.2362
DrillingInclinedEntry; CounterBoring; 100160772
Drill point angle180
Flute length (mm)3.00
Flute typeStraight
Functional length0.1181
Height (mm)4.00
Included angle degree180
Insert geometryFEG
Insert holding methodClamp
Insert seat sizeA
Iso numberKTFSS06000FEGM
Manufacturer gradeKCP15A
Material gradeFine Grain
Number of flutes2
Overall length projection0.1390
Point typeFlat
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Spiral typeStraight
StyleKTFSS
Tip materialSolid Carbide
Tooldimensions2flute/4margin/nocool
