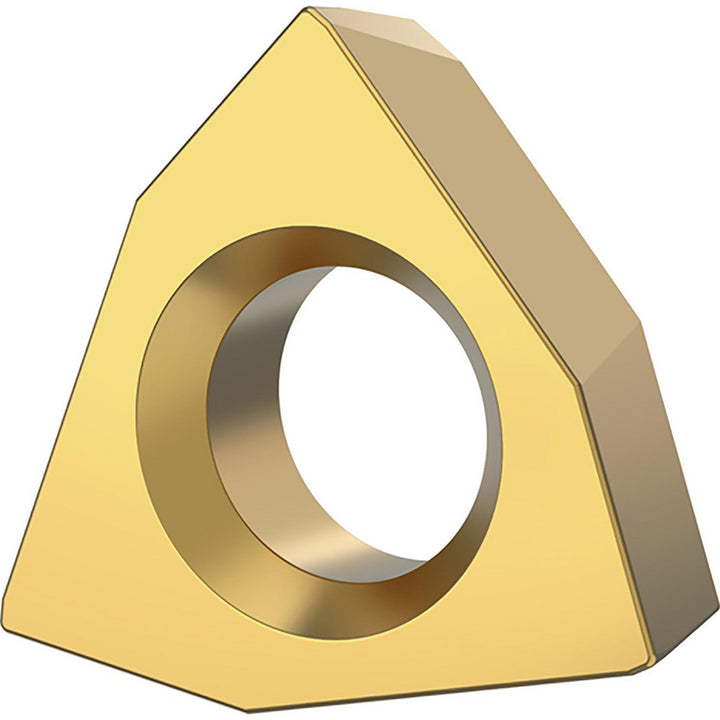

WBGX020101 Carbide Insert, Grade KCU10, TiAlN - Kennametal 6826761

Kennametal

WBGX020101 Carbide Insert, Grade KCU10, TiAlN - Kennametal 6826761

MFR# 6826761ISO/ANSI# WBGX020101Series eBore

$46.43
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/32
ShapeTrigon
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 6826761 is a WBGX020101 carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerFlat Top
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting edge styleHoned
Full radiusNo
Hole diameter0.0906
Included angle80
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert length0.2712
Insert materialCarbide
Insert shapeTrigon
Insert size code020101
Insert styleWBGX
Insert thickness in1/16
Iso codeWBGX020101
Length range0.0000 - 0.3000
Manufacturers catalog number6826761
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.0903
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle5
StandardsANSI; ISO
Tolerance codeG
Width0.2712
Wiper edgeNo
