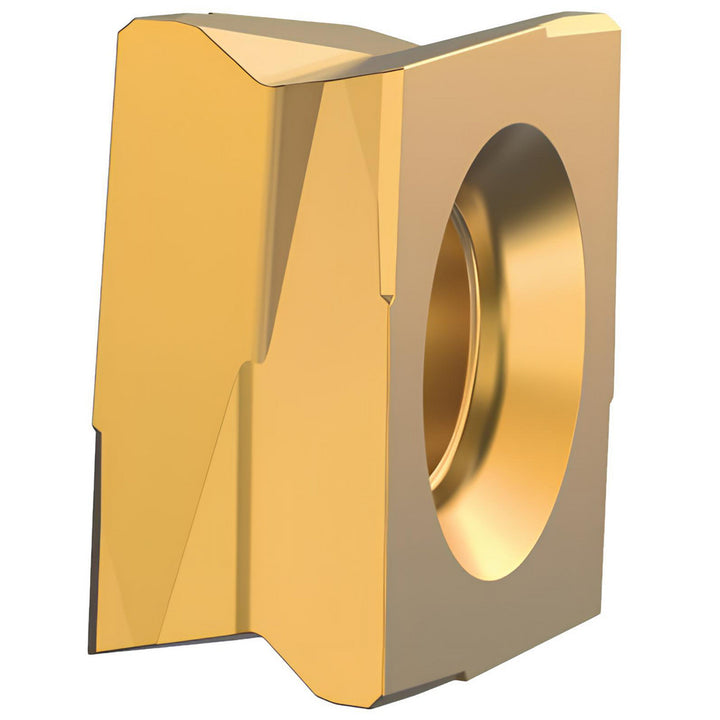

SPHX1205PCERGPB Solid Carbide Insert, Grade KCK20B, TiCN - Kennametal 6969252

Kennametal

SPHX1205PCERGPB Solid Carbide Insert, Grade KCK20B, TiCN - Kennametal 6969252

MFR# 6969252ISO/ANSI# SPHX1205PCERGPBCat# SPHX1205PCERGPBSeries SPHX

$42.67List $52.08 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeKCK20B
MaterialSolid Carbide
CoatingTiCN

Description

The Kennametal 6969252 is a SPHX1205PCERGPB solid carbide indexable insert, grade KCK20B, TiCN coated. Suited for cast iron.

Specifications

Ansi codeSPHX1205PCERGPB
Chip breakerGP
Coating finishTiCN
Coating processMTCVD
Cutter series compatibilityFix-Perfect
Cutting edge styleHoned
Hole diameter0.4724
Included angle degree90
Inscribed circle0.2165
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSPHX
Iso codeSPHX1205PCERGPB
Length0.2587
Length range0.0000 to 0.3200
Manufacturers catalog numberSPHX1205PCERGPB
Manufacturer gradeKCK20B
Material applicationSteel; Cast Iron
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakePositive
Relief angle11.00
Secondary workpiece materialSteel
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2165
Thickness range0.2000 to 0.2200
