Carbide Insert, Grade KC7325, TiAlN - Kennametal 7002465

Kennametal

Carbide Insert, Grade KC7325, TiAlN - Kennametal 7002465

MFR# 7002465Series KTFST

$172.22List $196.91 Save 12%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKC7325
CoatingTiAlN

Description

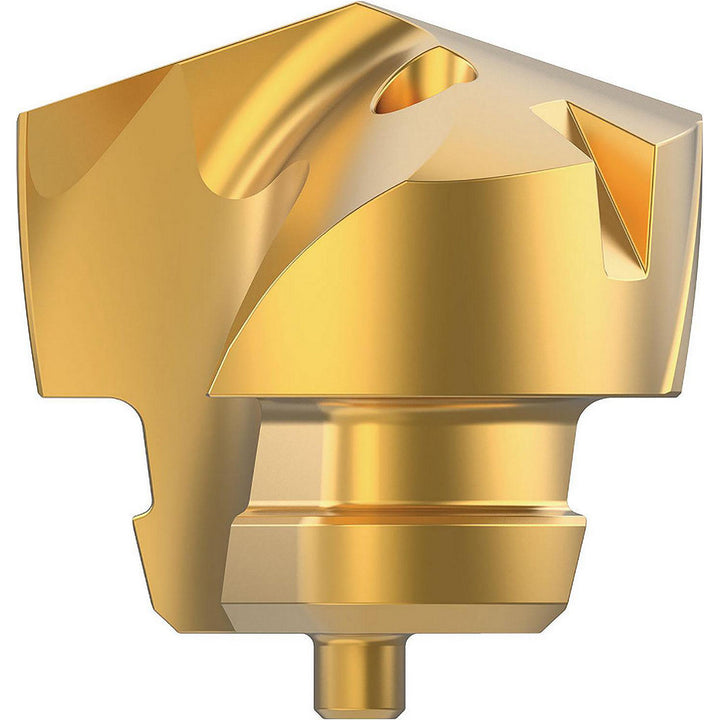

The Kennametal 7002465 is a carbide indexable insert, grade KC7325, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

ApplicationsToolDimensions:2flute/2margin/coolant; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter (mm)23.00
DrillingStackedPlates; 100160772
Drill point angle140
Flute length (mm)11.00
Flute typeHelical
Functional length0.4528
Height (mm)15.00
Included angle degree140
Insert geometryGTP
Insert holding methodClamp
Insert seat sizeZB
Iso numberKTFST23000GTPM
Manufacturer gradeKC7325
Material gradeFine Grain
Number of flutes2
Overall length projection0.6020
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKTFST
Tip materialSolid Carbide
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
