Carbide Insert, Grade KC7325, TiAlN - Kennametal 7002517

MFR# 7002517Series KTFST

$105.77List $120.93 Save 12%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKC7325
CoatingTiAlN

Description

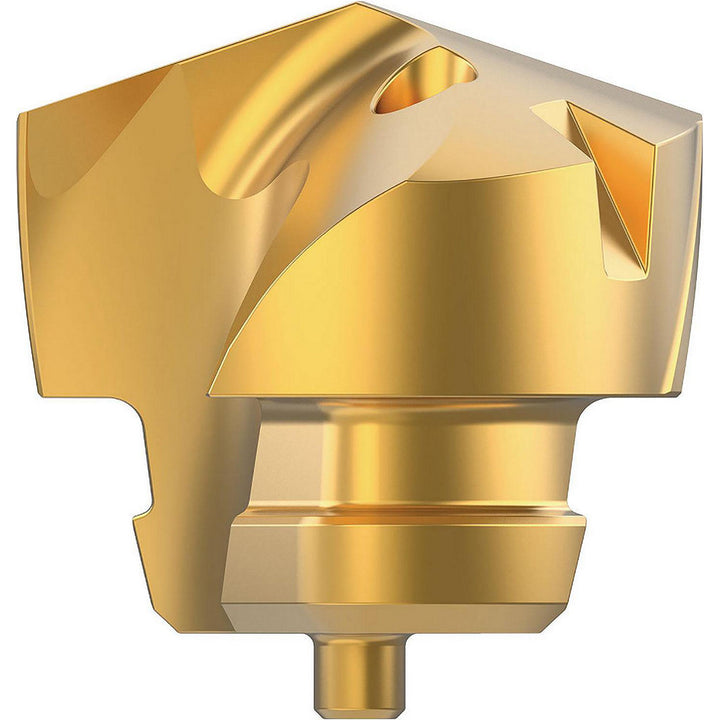

The Kennametal 7002517 is a carbide indexable insert, grade KC7325, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

ApplicationsToolDimensions:2flute/2margin/coolant; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter (mm)11.00
DrillingStackedPlates; 100160772
Drill point angle140
Flute length (mm)5.00
Flute typeHelical
Functional length0.2126
Height in9/32
Included angle degree140
Insert geometryGTP
Insert holding methodClamp
Insert seat sizeK
Iso numberKTFST10800GTPM
Manufacturer gradeKC7325
Material gradeFine Grain
Number of flutes2
Overall length projection0.2811
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKTFST
Tip materialSolid Carbide
