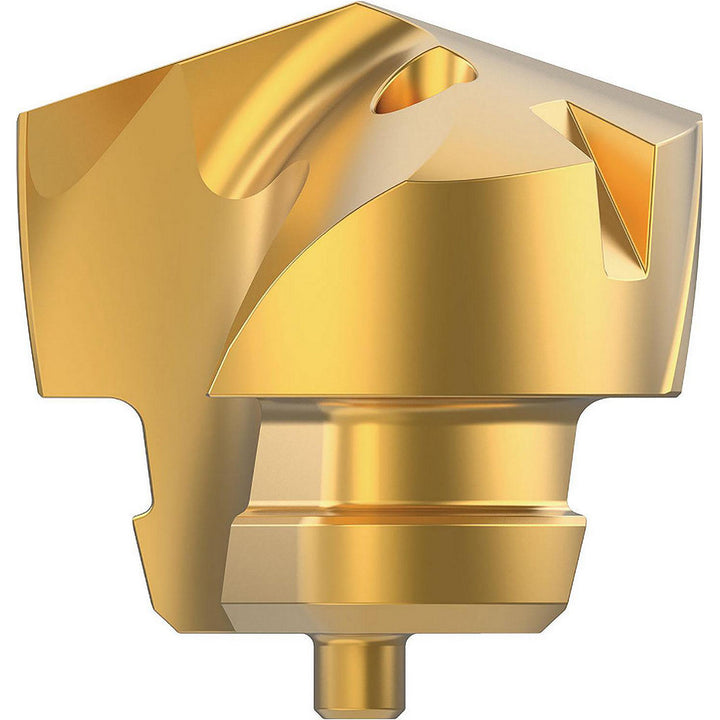

Carbide Insert, Grade KC7325, TiAlN - Kennametal 7004194

Kennametal

Carbide Insert, Grade KC7325, TiAlN - Kennametal 7004194

MFR# 7004194Series KTFST

$129.01List $147.51 Save 12%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeKC7325
CoatingTiAlN

Description

The Kennametal 7004194 is a carbide indexable insert, grade KC7325, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

ApplicationsToolDimensions:2flute/2margin/coolant; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter (mm)16.67
DrillingStackedPlates; 100160772
Drill point angle140
Flute length (mm)8.00
Flute typeHelical
Functional length0.3282
Height (mm)11.00
Included angle degree140
Insert geometryGTP
Insert holding methodClamp
Insert seat sizeU
Iso numberKTFST06563GTP
Manufacturer gradeKC7325
Material gradeFine Grain
Number of flutes2
Overall length projection0.4353
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKTFST
Tip materialSolid Carbide
