Kennametal

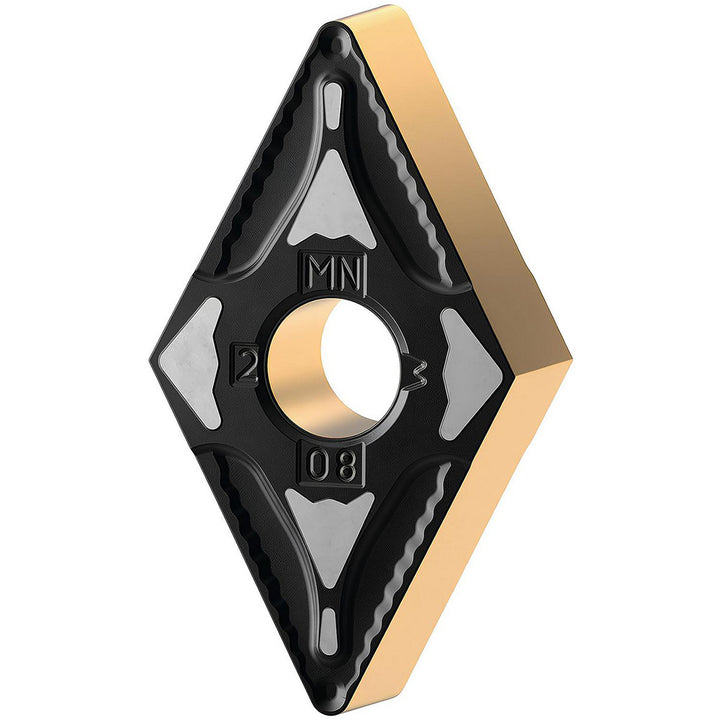

DNMG150412MN Carbide Insert, Grade KCP25C, TiN - Kennametal 7026426
MFR# 7026426ISO/ANSI# DNMG433MNSeries KENLOC
$25.94List $31.67
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7026426 is a DNMG150412MN carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerMN
Clearance codeN
Coating finishTiN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle55
Industry standard numberDNMG433MN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150412MN
Length range0.7000 - 10.0000
Manufacturers catalog number7026426
Manufacturer gradeKCP25C
Maximum depth of cut0.4065
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
