Kennametal

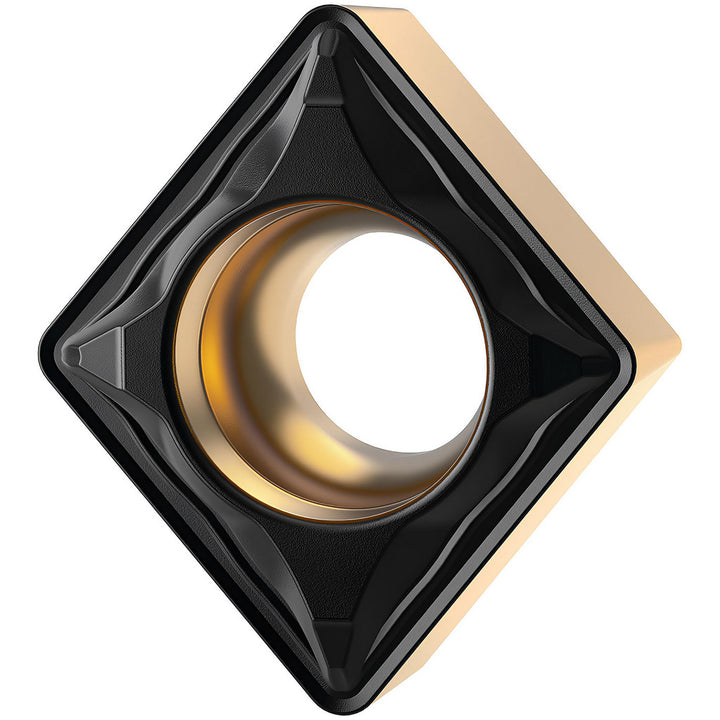

CCMT060204FP Carbide Insert, Grade KCP25C, TiN - Kennametal 7026457
MFR# 7026457ISO/ANSI# CCMT2151FPSeries Screw-On
$19.67List $24.01
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7026457 is a CCMT060204FP carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerFP
Clearance codeC
Coating finishTiN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle80
Industry standard numberCCMT2151FP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond
Insert size code2151
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204FP
Length range0.0000 - 0.3000
Manufacturers catalog number7026457
Manufacturer gradeKCP25C
Maximum depth of cut0.0845
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
