Kennametal

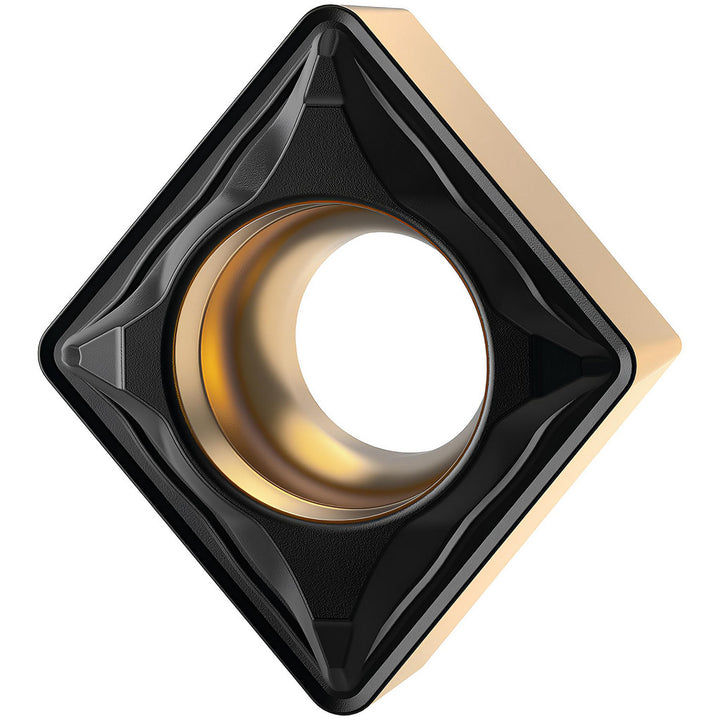

CCMT09T302FP Carbide Insert, Grade KCP25C, TiN - Kennametal 7026531
MFR# 7026531ISO/ANSI# CCMT32505FPSeries Screw-On
$23.16List $28.28
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7026531 is a CCMT09T302FP carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerFP
Clearance codeC
Coating finishTiN
Coating processCVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle80
Industry standard numberCCMT32505FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeDiamond
Insert size code32505
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T302FP
Length range0.3000 - 0.4000
Manufacturers catalog number7026531
Manufacturer gradeKCP25C
Maximum depth of cut0.1268
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
