Kennametal

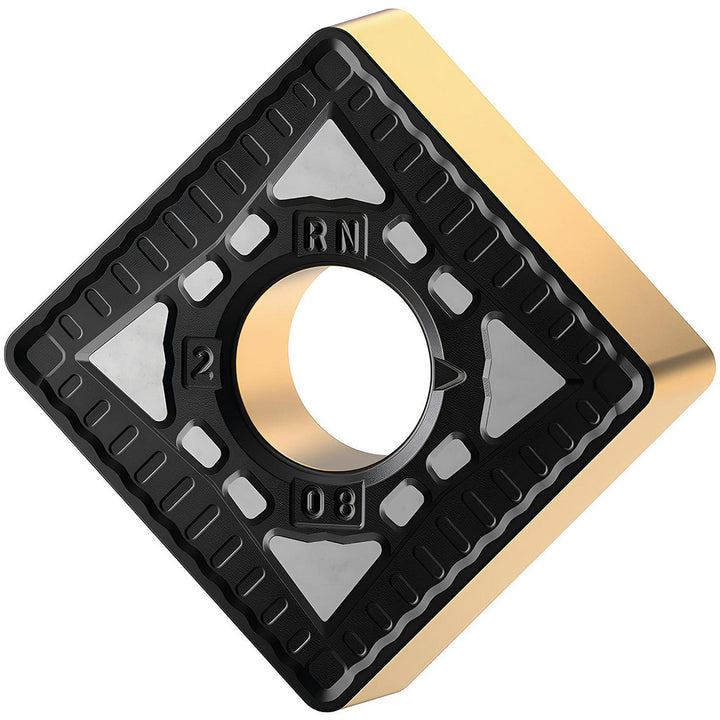

SNMG190612RN Carbide Insert, Grade KCP25C, TiN - Kennametal 7026682
MFR# 7026682ISO/ANSI# SNMG643RNSeries KENLOC
$37.76List $46.10
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7026682 is a SNMG190612RN carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerRN
Clearance codeN
Coating finishTiN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.3125
Included angle90
Industry standard numberSNMG643RN
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialCarbide
Insert shapeSquare
Insert size code643
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG190612RN
Length range0.7000 - 10.0000
Manufacturers catalog number7026682
Manufacturer gradeKCP25C
Maximum depth of cut0.2498
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
