Kennametal

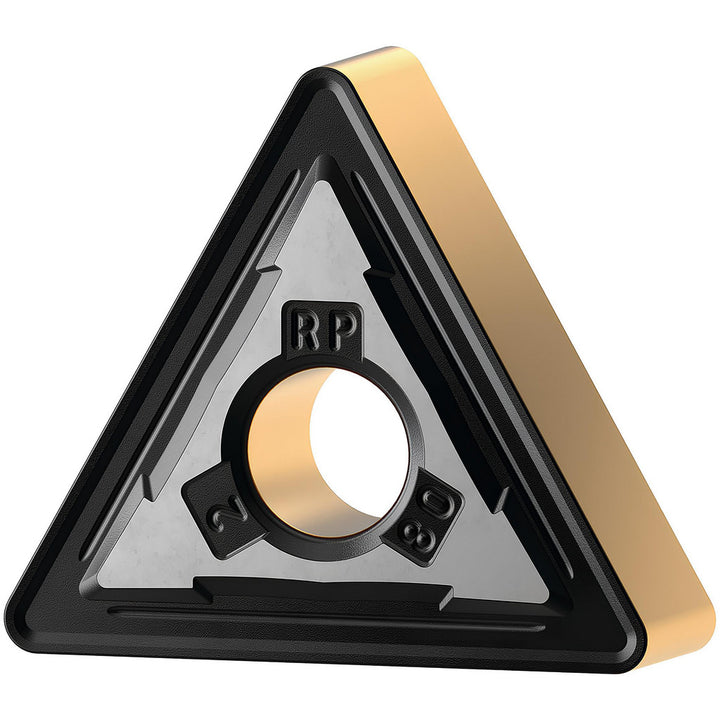

TNMG160408RP Carbide Insert, Grade KCP25C, TiN - Kennametal 7026684
MFR# 7026684ISO/ANSI# TNMG332RPSeries KENLOC
$16.27List $19.86
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7026684 is a TNMG160408RP carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerRP
Clearance codeN
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle60
Industry standard numberTNMG332RP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6495
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG160408RP
Length range0.6000 - 0.6500
Manufacturers catalog number7026684
Manufacturer gradeKCP25C
Maximum depth of cut0.2163
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle5
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6495
Wiper edgeNo
