Kennametal

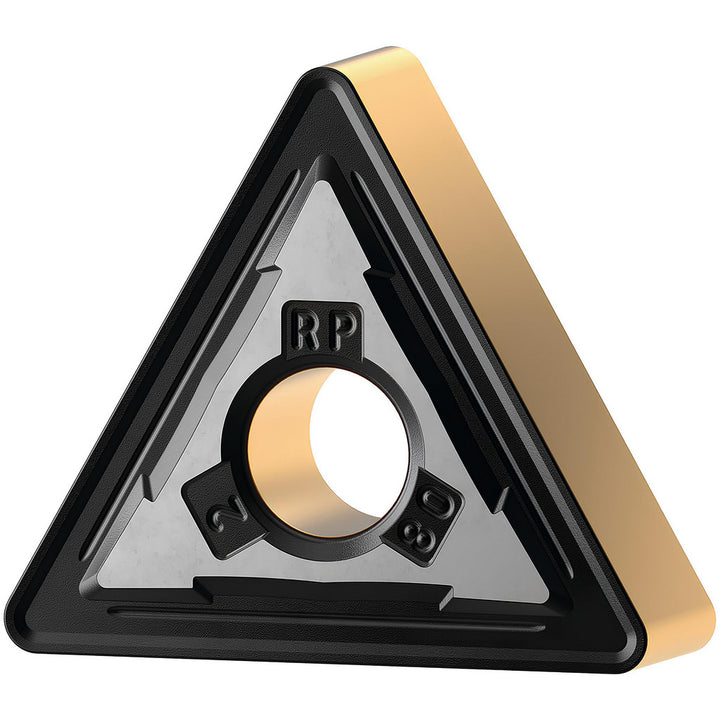

TNMG220408RP Carbide Insert, Grade KCP25C, TiN - Kennametal 7026686
MFR# 7026686ISO/ANSI# TNMG432RPSeries KENLOC
$21.45List $26.18
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7026686 is a TNMG220408RP carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerRP
Clearance codeN
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle60
Industry standard numberTNMG432RP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408RP
Length range0.7000 - 10.0000
Manufacturers catalog number7026686
Manufacturer gradeKCP25C
Maximum depth of cut0.2884
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle5
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.8661
Wiper edgeNo
