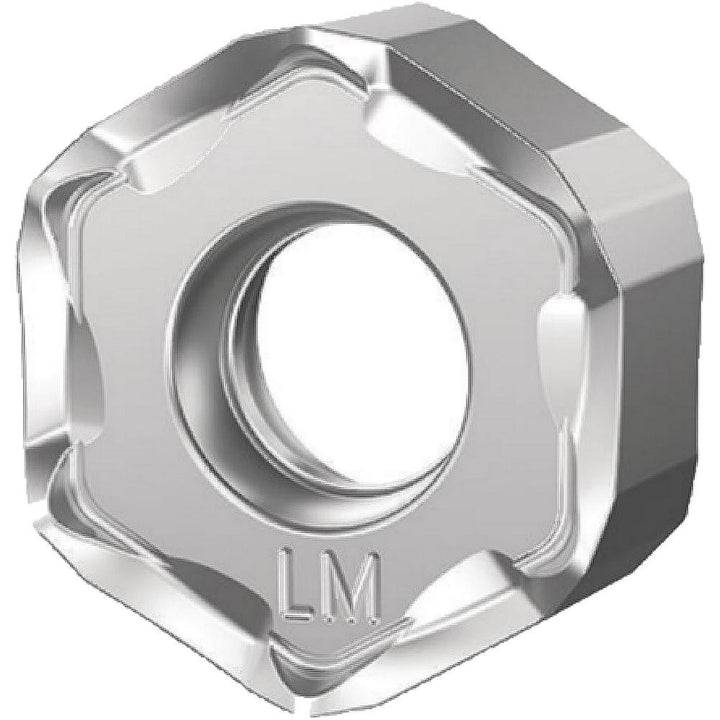

HNGJ0604ANERGM Solid Carbide Insert, Grade KCSM40, TiAlN - Kennametal 7032978
MFR# 7032978ISO/ANSI# HNGJ0604ANERGMCat# HNGJ0604ANERGMSeries HNGJ
$38.13List $46.54
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeHexagon
GradeKCSM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 7032978 is a HNGJ0604ANERGM solid carbide indexable insert, grade KCSM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHNGJ43ANERGM
Chip breakerGM
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityDodeka
Cutting edge styleHoned
Hole diameter0.1969
Included angle degree120
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size4
Insert size code43
Insert styleHNGJ
Iso codeHNGJ0604ANERGM
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberHNGJ0604ANERGM
Manufacturer gradeKCSM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2524
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle0
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in17/64
Thickness range0.2500 to 0.3500
Width in5/8
