Kennametal

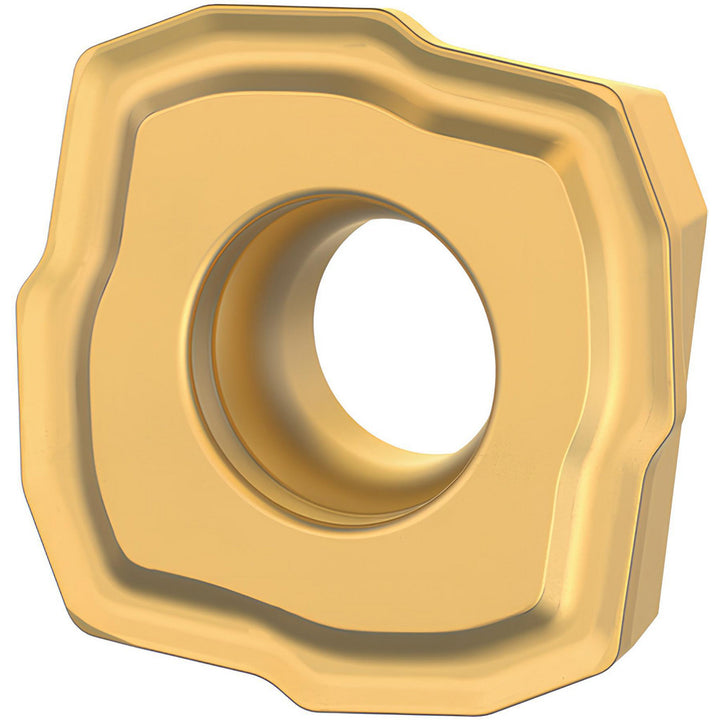

DFPR100305PKI Carbide Insert, Grade KC7140, TiN - Kennametal 7034098
MFR# 7034098ISO/ANSI# DFPR100305PKISeries Drill Fix
$26.97List $32.92
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC7140
MaterialCarbide
CoatingTiN
Description
The Kennametal 7034098 is a DFPR100305PKI carbide indexable insert, grade KC7140, TiN coated.
Specifications
Ansi codeDFPR100305PKI
ChipbreakerPK
Coating finishTiN
Compatible drill styleDFPR
Corner radius0.0200
Cutting directionRight Hand
Hole diameter0.0200
Included angle degree8
Inscribed circle0.3900
Insert materialCarbide
Insert size10
Insert size code10
Insert styleDFPR
Iso codeDFPR100305PKI
Length0.3180
Manufacturer gradeKC7140
Relief angle8.000
ShapeSpecial
Thickness (mm)3.0000
Width0.3180
