Kennametal

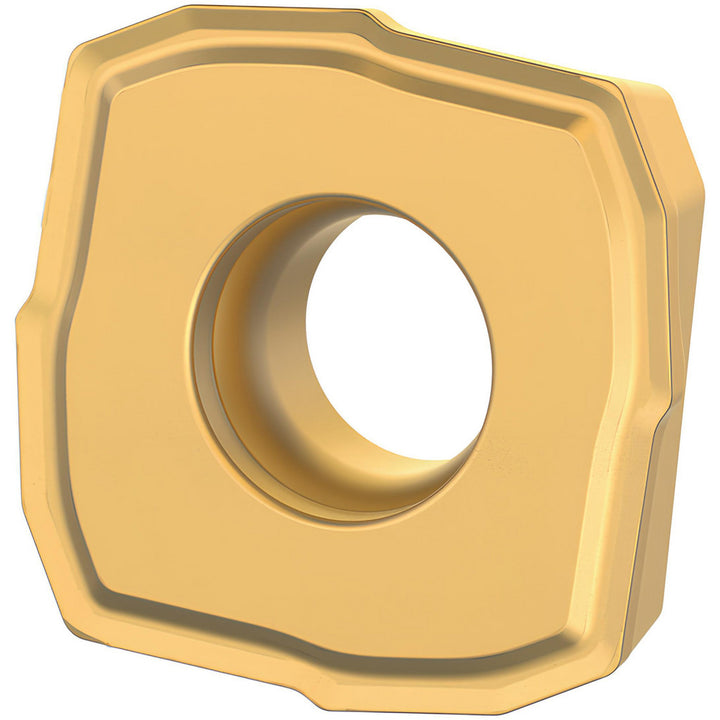

DFPR200608MSI Carbide Insert, Grade KCU45, TiN/TiCN/TiN - Kennametal 7034353
MFR# 7034353ISO/ANSI# DFPR200608MSISeries Drill Fix
$31.30List $38.20
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU45
MaterialCarbide
CoatingTiN/TiCN/TiN
Description
The Kennametal 7034353 is a DFPR200608MSI carbide indexable insert, grade KCU45, TiN/TiCN/TiN coated.
Specifications
Ansi codeDFPR200608MSI
ChipbreakerMS
Coating finishTiN/TiCN/TiN
Compatible drill styleDFPR
Corner radius0.0320
Cutting directionRight Hand
Included angle degree8
Inscribed circle0.8070
Insert materialCarbide
Insert size20
Insert size code20
Insert styleDFPR
Iso codeDFPR200608MSI
Length0.6720
Manufacturer gradeKCU45
Relief angle8.000
ShapeSpecial
Thickness (mm)6.2000
Width0.6720
