Kennametal

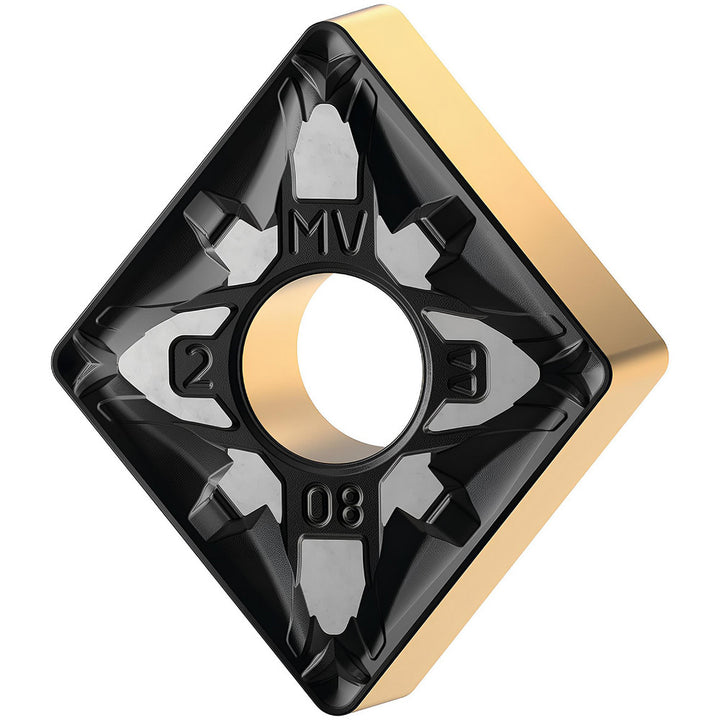

CNMG160612MV Carbide Insert, Grade KCP25C, TiN - Kennametal 7036150
MFR# 7036150ISO/ANSI# CNMG543MVSeries KENLOC
$32.22List $39.33
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7036150 is a CNMG160612MV carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerMV
Clearance codeN
Coating finishTiN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle80
Industry standard numberCNMG543MV
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeDiamond
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612MV
Length range0.6000 - 0.6500
Manufacturers catalog number7036150
Manufacturer gradeKCP25C
Maximum depth of cut0.2113
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle20
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
