Kennametal

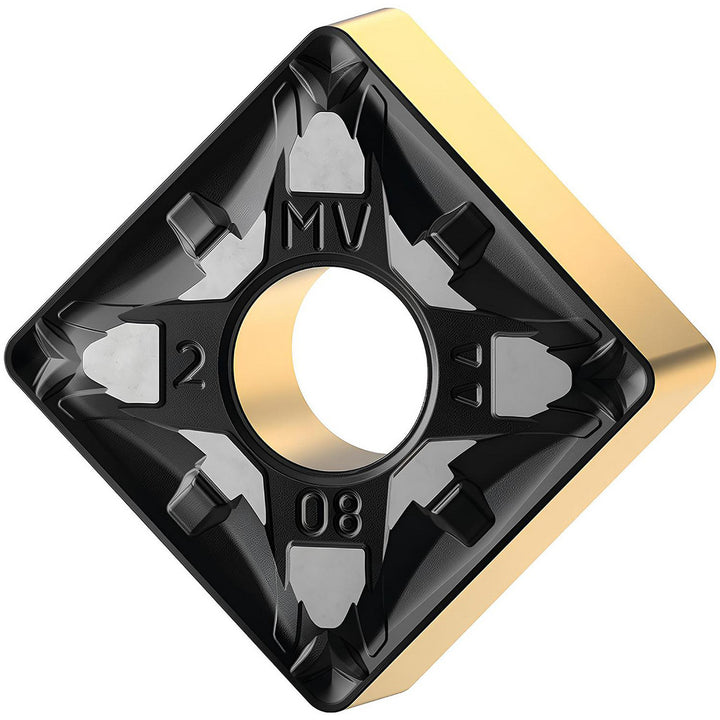

SNMG120404MV Carbide Insert, Grade KCP25C, TiN - Kennametal 7036166
MFR# 7036166ISO/ANSI# SNMG120404Series KENLOC
$18.27List $22.31
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeS - Square
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7036166 is a SNMG120404MV carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeSNMG431
Ansi size code431
Chip breakerMV
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2031
Included angle90
Industry standard numberSNMG431MV
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code431
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120404MV
Iso insert codeSNMG120404
Iso size code120404
Length range0.5000 - 0.6000
Manufacturers catalog number7036166
Manufacturer gradeKCP25C
Maximum depth of cut0.1665
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle20
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
