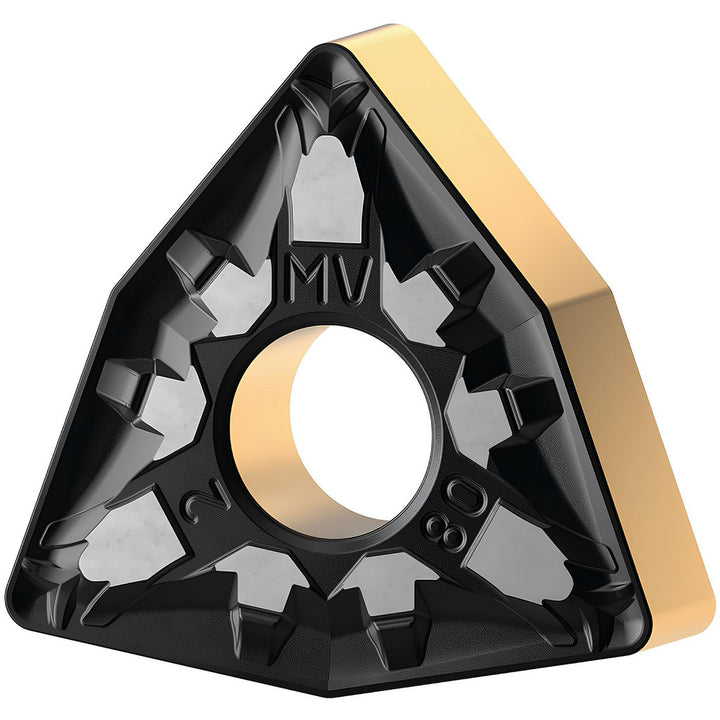

WNMG080408MV Carbide Insert, Grade KCP25C, TiN - Kennametal 7036177
MFR# 7036177ISO/ANSI# WNMG432MVSeries KENLOC
$20.22List $24.68
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7036177 is a WNMG080408MV carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerMV
Clearance codeN
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle80
Industry standard numberWNMG432MV
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408MV
Length range0.6500 - 0.7000
Manufacturers catalog number7036177
Manufacturer gradeKCP25C
Maximum depth of cut0.2278
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle20
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.684
Wiper edgeNo
