Kennametal
C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade KCP25C, Al2O3 - Kennametal 7064027
MFR# 7064027ISO/ANSI# CNMG120408
$19.85List $24.24
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCP25C
MaterialCarbide
CoatingAl2O3
Description

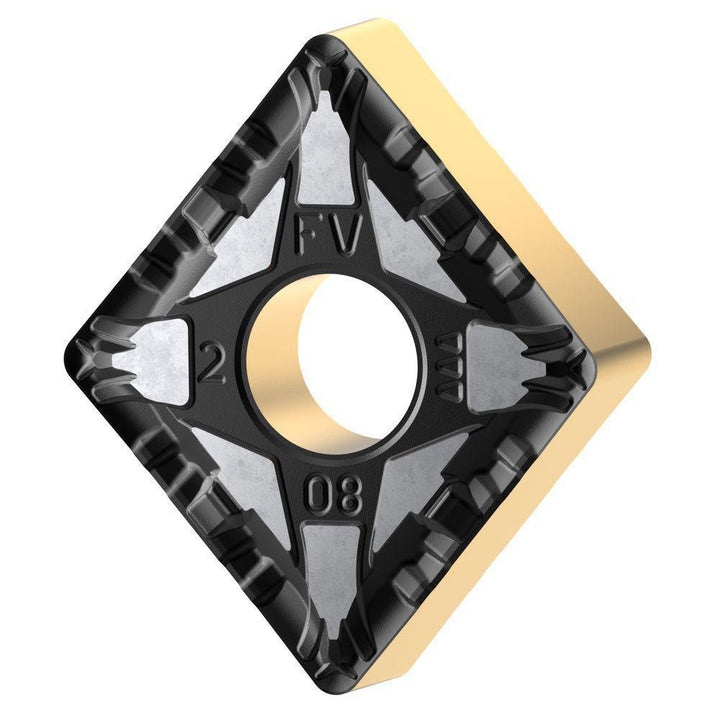

The Kennametal 7064027 is a carbide indexable insert, grade KCP25C, Al2O3 coated.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerFV
Chip breaker operationFinishing
Clearance codeN
Coating finishAl2O3
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso insert codeCNMG120408
Iso size code120408
Manufacturer gradeKCP25C
Number of cutting edges4
Relief angle0
Side clearanceNegative
Tolerance codeM
Width in3/16
