Kennametal

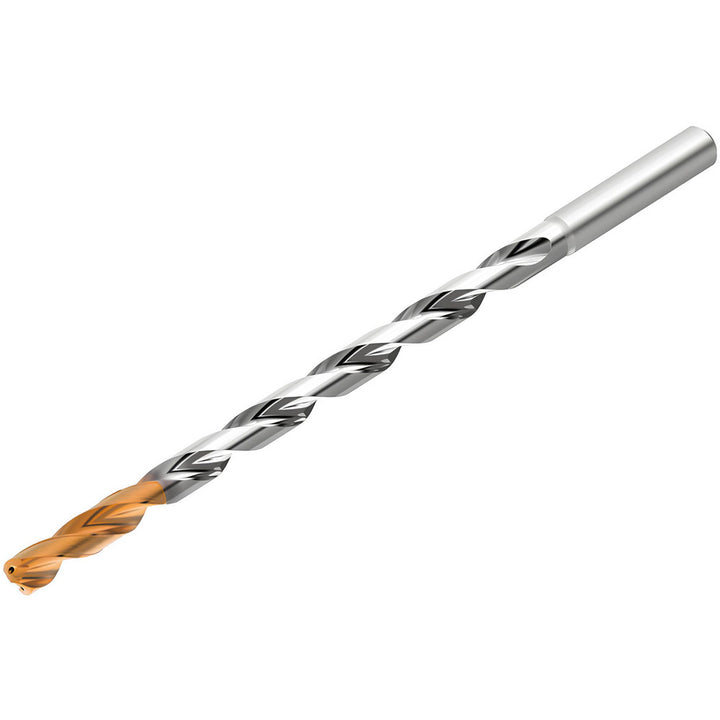

3/8" Solid Carbide Drill Bit, AlCrN, 135° point - Kennametal 7081671
MFR# 7081671Series HPR
$603.60List $774.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Flutes2
CoatingAlCrN
Description
The Kennametal 7081671 is a 3/8" Solid Carbide drill bit with a AlCrN finish, 135° point. Series HPR.
Specifications
Coating finishAlCrN
Coolant throughYes
Drill bit size in3/8
Drill point angle135
Drill point length (mm)3.18
Flute by diameter ratio20xD
Flute length (mm)170.00
Flute typeSpiral
Maximum drilling depth (mm)149.00
Number of flutes2
Overall length (mm)219.0000
Point typeChisel Point
Shank diameter (mm)10.0000
Shank length (mm)44.000
Tool materialSolid Carbide
