Kennametal

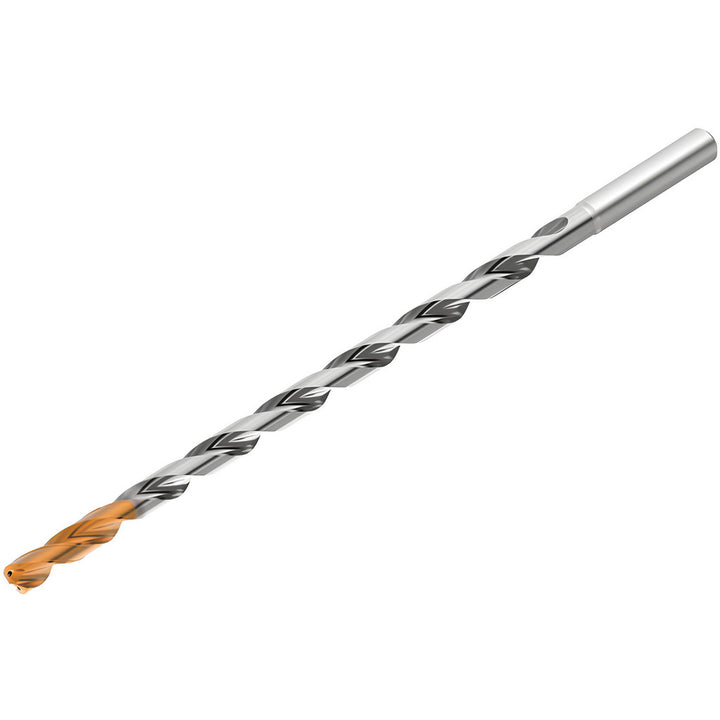

1/4" Solid Carbide Drill Bit, AlCrN, 135° point - Kennametal 7081772
MFR# 7081772Series HPR
$465.54List $597.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
Flutes2
CoatingAlCrN
Description
The Kennametal 7081772 is a 1/4" Solid Carbide drill bit with a AlCrN finish, 135° point. Series HPR.
Specifications
Coating finishAlCrN
Coolant throughYes
Drill bit size in1/4
Drill bit size letterE
Drill point angle135
Drill point length (mm)2.12
Flute by diameter ratio25xD
Flute length (mm)151.00
Flute typeSpiral
Maximum drilling depth (mm)136.00
Number of flutes2
Overall length (mm)197.0000
Point typeChisel Point
Shank diameter (mm)7.0000
Shank length (mm)38.000
Tool materialSolid Carbide
