Kennametal

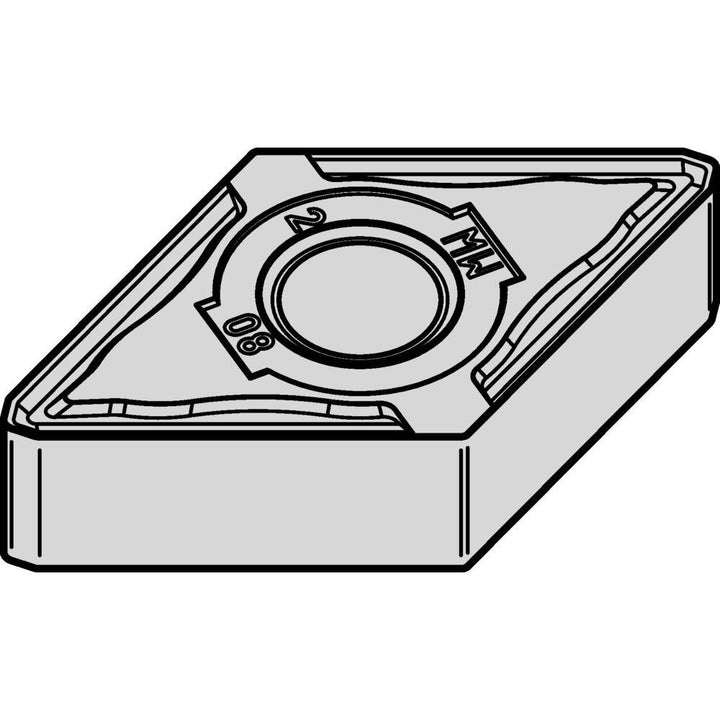

Diamond 55 1/2" IC Carbide Insert, Grade KCP25C, MT-TiCN - Kennametal 7088637
MFR# 7088637ISO/ANSI# DNMGSeries Kenloc Inserts
$21.65List $26.43
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeKCP25C
MaterialCarbide
CoatingMT-TiCN
Description
The Kennametal 7088637 is a carbide indexable insert, grade KCP25C, MT-TiCN coated.
Specifications
Ansi insert codeDNMG
Chip breakerMW
Clearance codeN
Coating finishMT-TiCN
Corner radius in1/32
Cutting edge styleHoned
Included angle55.00
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6104
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso insert codeDNMG
Manufacturer gradeKCP25C
Number of cutting edges4
RakePositive
Rake angle5
Relief angle0.000
Side clearanceNegative
Tolerance codeM
Width in1/2
