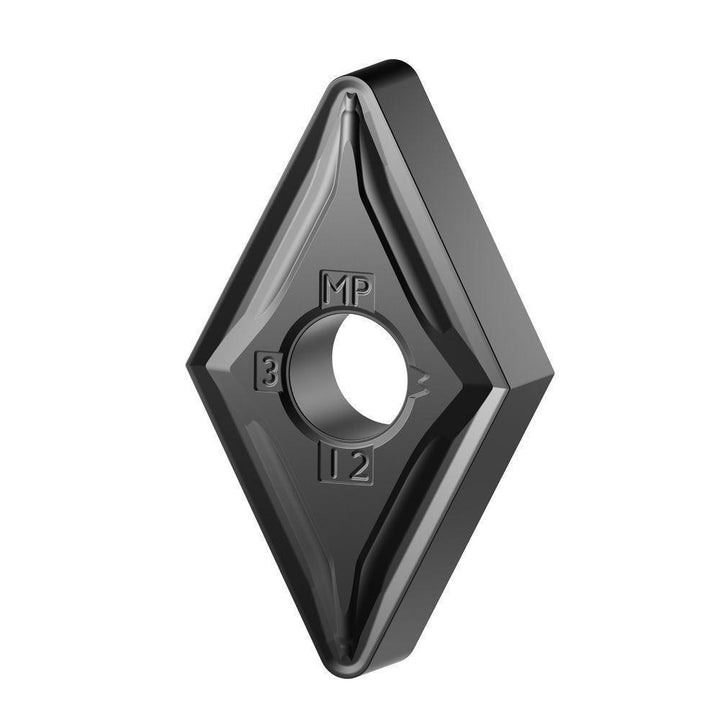

D - Diamond (Rhombic) 55-Deg 3/8" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7090555

Kennametal

D - Diamond (Rhombic) 55-Deg 3/8" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7090555

MFR# 7090555ISO/ANSI# DNMG110408

$18.09List $22.08 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCU10B
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 7090555 is a carbide indexable insert, grade KCU10B, AlTiN coated.

Specifications

Ansi insert codeDNMG332
Ansi size code332
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAlTiN
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code332
Insert styleDNMG
Insert thickness in3/16
Iso insert codeDNMG110408
Iso size code110408
Manufacturer gradeKCU10B
Number of cutting edges4
Relief angle0
Side clearanceNegative
Tolerance codeM
Width in3/16
