Kennametal

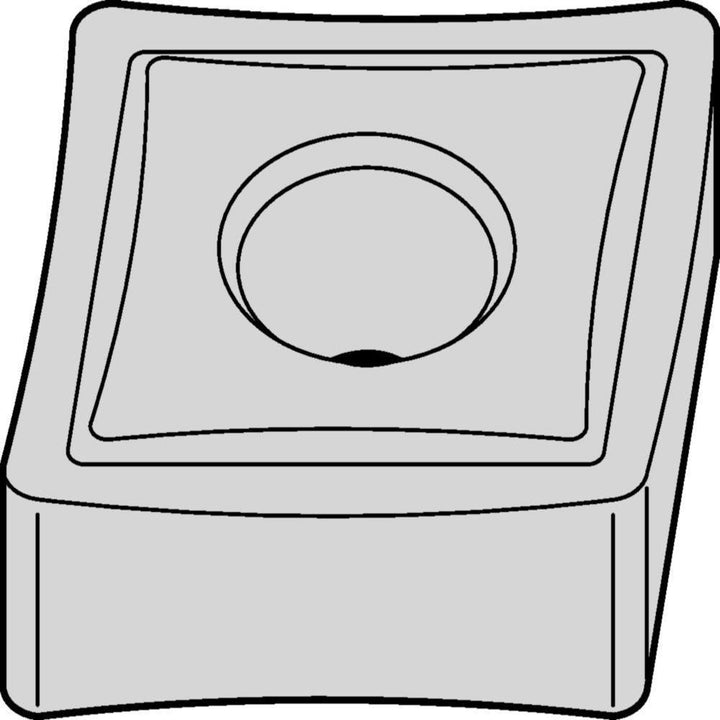

Diamond 1/2" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7090560
MFR# 7090560
$25.72List $31.39
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7090560 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerP
Clearance codeN
Coating finishAlTiN
Corner radius in.004
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert materialCarbide
Insert shapeDiamond
Insert size code4302
Insert styleCNGP
Insert thickness in3/16
Manufacturer gradeKCU10B
Number of cutting edges4
Relief angle0.000
Tolerance codeG
Width in3/16
