Kennametal

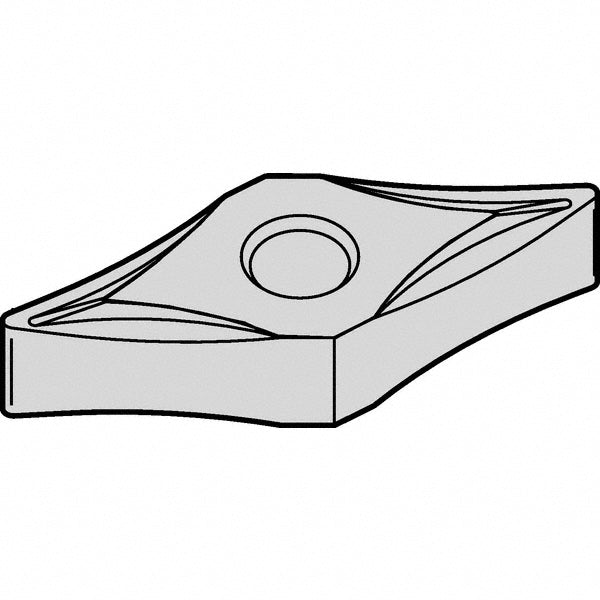

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7090612
MFR# 7090612ISO/ANSI# VNGP160404
$25.90List $31.62
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7090612 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Ansi insert codeVNGP331
Ansi size code331
Chip breakerP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAlTiN
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNGP
Insert thickness in3/16
Iso insert codeVNGP160404
Iso size code160404
Manufacturer gradeKCU10B
Number of cutting edges2
Relief angle0
Side clearanceNegative
Tolerance codeG
Width in3/16
