Kennametal

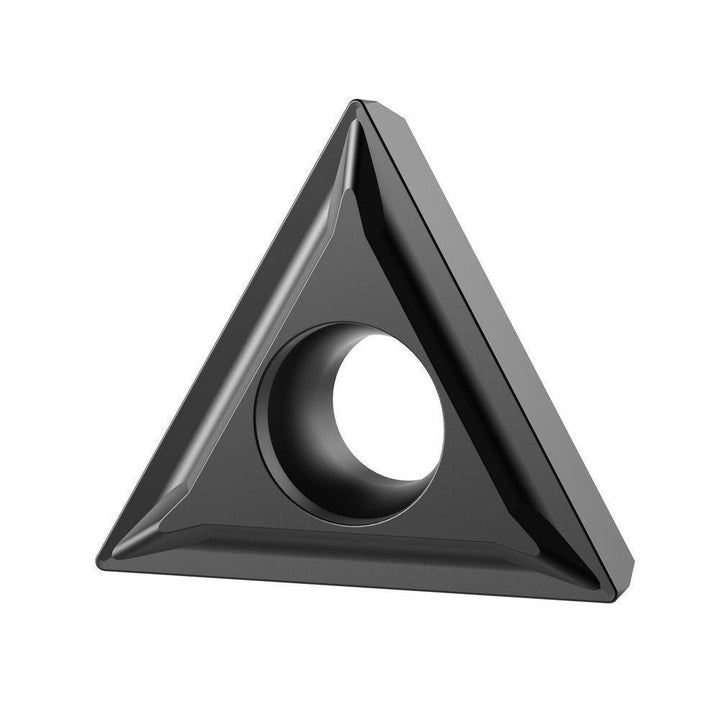

Triangle Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093155
MFR# 7093155
$25.53List $31.16
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7093155 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerLF
Clearance codeP
Coating finishAlTiN
Corner radius in1/32
Included angle60
Insert handNeutral
Insert materialCarbide
Insert shapeTriangle
Insert size code3252
Insert styleTPGT
Insert thickness in5/32
Manufacturer gradeKCU10B
Number of cutting edges3
Relief angle11.000
Tolerance codeG
Width in5/32
