Kennametal

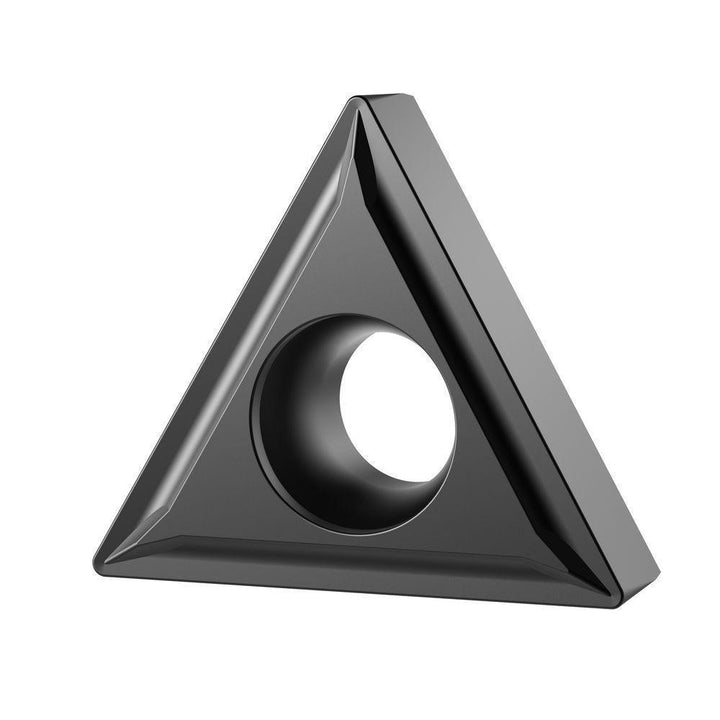

Triangle 3/8" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093173
MFR# 7093173
$27.56List $33.64
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7093173 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerLF
Clearance codeC
Coating finishAlTiN
Corner radius in1/32
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert materialCarbide
Insert shapeTriangle
Insert size code3252
Insert styleTCGT
Insert thickness in5/32
Manufacturer gradeKCU10B
Number of cutting edges3
Relief angle7.000
Tolerance codeG
Width in5/32
