Kennametal

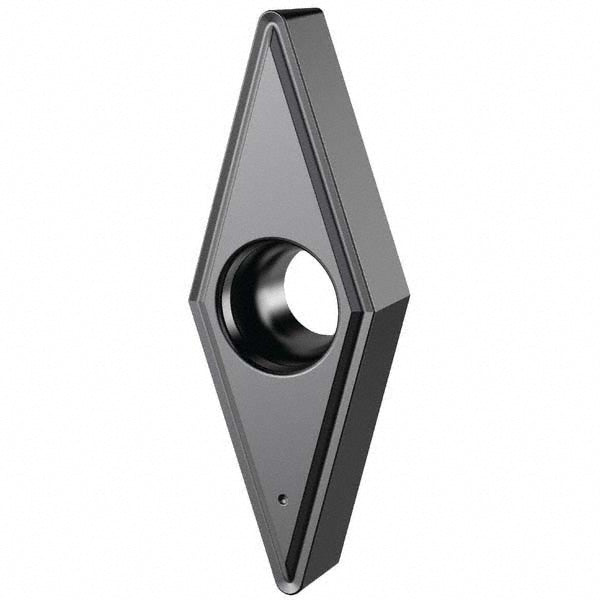

Diamond Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093176
MFR# 7093176
$30.31List $36.99
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7093176 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerLF
Clearance codeB
Coating finishAlTiN
Corner radius in.004
Included angle35
Insert handNeutral
Insert materialCarbide
Insert shapeDiamond
Insert size code2202
Insert styleVBGT
Insert thickness in1/8
Manufacturer gradeKCU10B
Number of cutting edges2
Relief angle5.000
Tolerance codeG
Width in1/8
