Kennametal

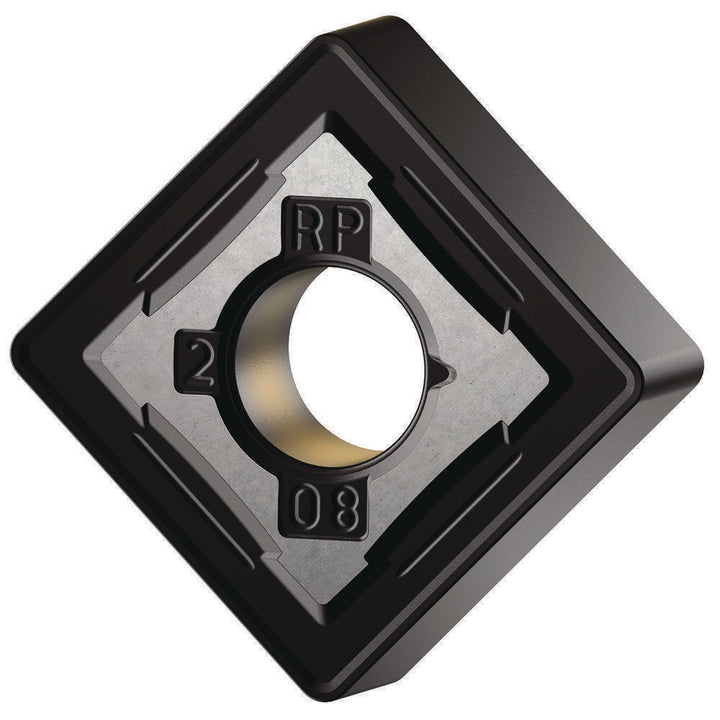

Square Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093259
MFR# 7093259
$18.27List $22.31
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7093259 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerRP
Clearance codeN
Coating finishAlTiN
Corner radius in1/32
Included angle90
Insert handNeutral
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Manufacturer gradeKCU10B
Number of cutting edges8
Relief angle0.000
Tolerance codeM
Width in3/16
