Kennametal

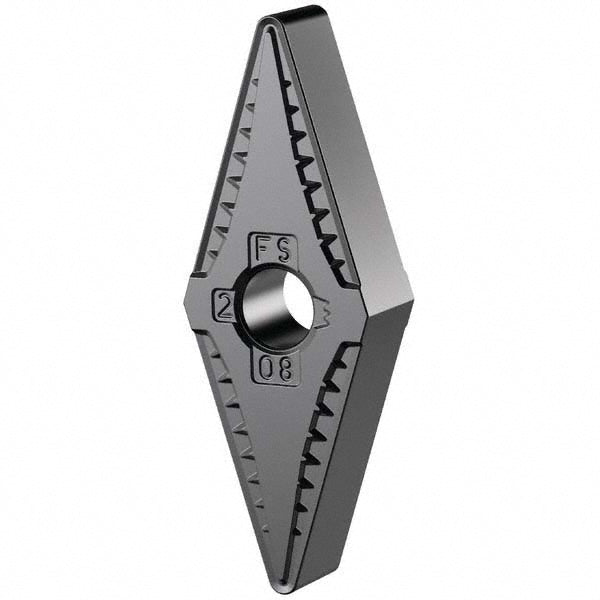

V - Diamond (Rhombic) 35-Deg 0.3750" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093270
MFR# 7093270ISO/ANSI# VNGG160401
$25.90List $31.62
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7093270 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Ansi insert codeVNGG3302
Ansi size code3302
Chip breakerFS
Chip breaker operationFinishing
Clearance codeN
Coating finishAlTiN
Corner radius0.0040
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Included angle35
Inscribed circle0.3750
Insert handNeutral
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code3302
Insert styleVNGG
Insert thickness in3/16
Iso insert codeVNGG160401
Iso size code160401
Manufacturer gradeKCU10B
Number of cutting edges4
Relief angle0
Side clearanceNegative
Tolerance codeG
Width in3/16
