Kennametal

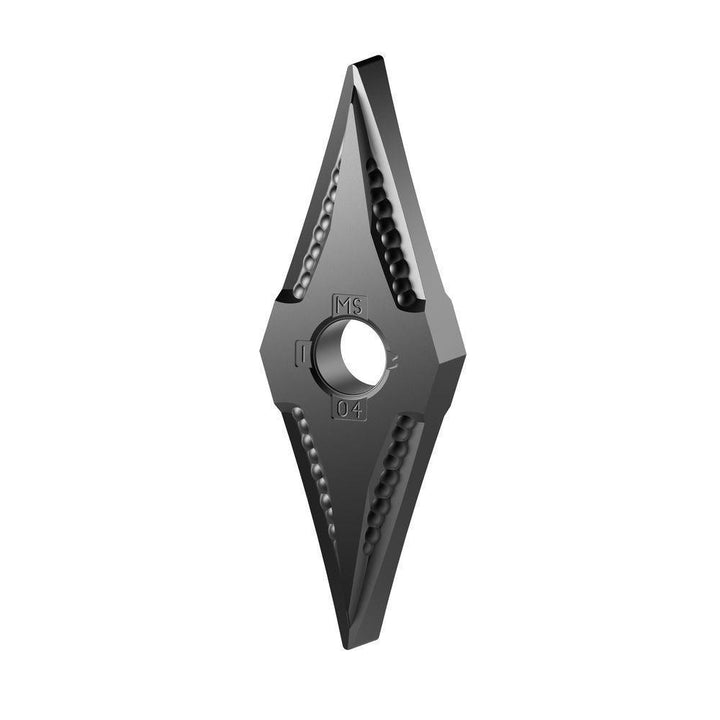

Diamond Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093281
MFR# 7093281
$24.50List $29.90
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7093281 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerMS
Clearance codeN
Coating finishAlTiN
Corner radius in.004
Included angle35
Insert handNeutral
Insert materialCarbide
Insert shapeDiamond
Insert size code3302
Insert styleVNMG
Insert thickness in3/16
Manufacturer gradeKCU10B
Number of cutting edges4
Relief angle0.000
Tolerance codeM
Width in3/16
