Kennametal

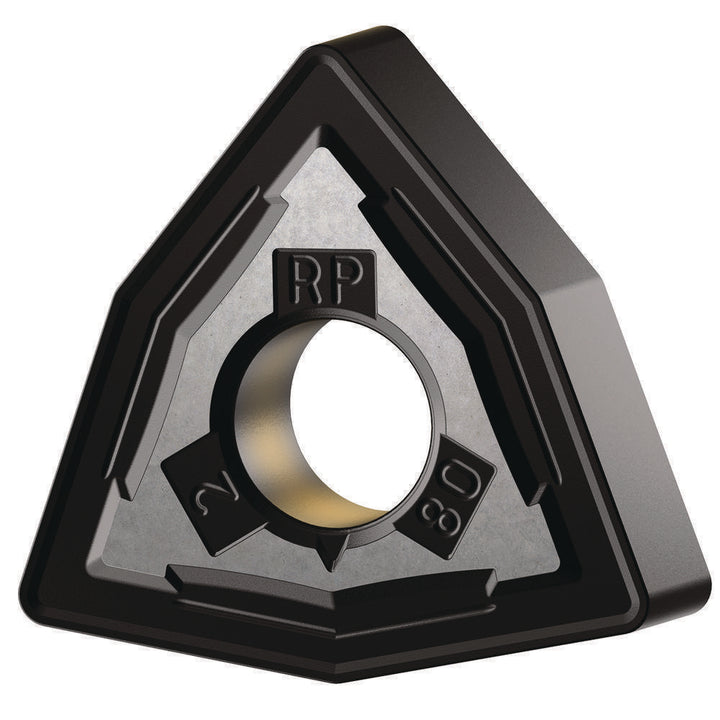

Trigon Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093317
MFR# 7093317
$20.22List $24.68
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7093317 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerRP
Clearance codeN
Coating finishAlTiN
Corner radius in3/64
Included angle80
Insert handNeutral
Insert materialCarbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Manufacturer gradeKCU10B
Number of cutting edges6
Relief angle0.000
Tolerance codeM
Width in3/16
