Kennametal
Diamond Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093364
MFR# 7093364
$30.31List $36.99
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description

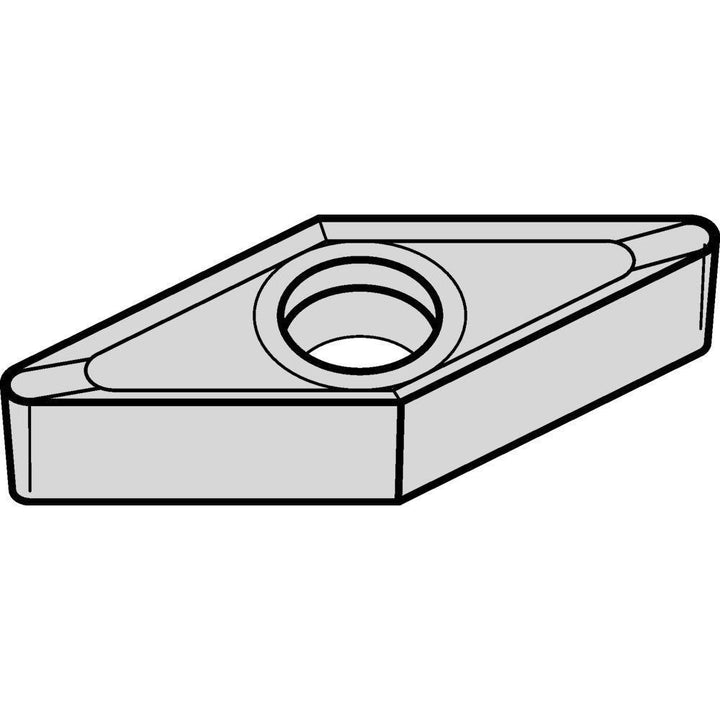

The Kennametal 7093364 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerHP
Clearance codeB
Coating finishAlTiN
Corner radius in1/64
Included angle35
Insert handNeutral
Insert materialCarbide
Insert shapeDiamond
Insert size code221
Insert styleVBGT
Insert thickness in1/8
Manufacturer gradeKCU10B
Number of cutting edges2
Relief angle5.000
Tolerance codeG
Width in1/8
