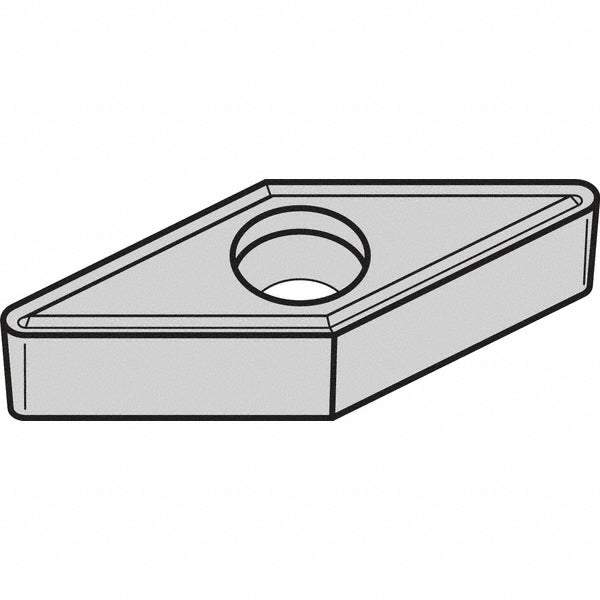

V - Diamond (Rhombic) 35-Deg 0.2500" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093813

Kennametal

V - Diamond (Rhombic) 35-Deg 0.2500" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093813

MFR# 7093813ISO/ANSI# VBMT110304

$26.97List $32.92 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCU10B
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 7093813 is a carbide indexable insert, grade KCU10B, AlTiN coated.

Specifications

Ansi insert codeVBMT221
Ansi size code221
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeB
Coating finishAlTiN
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Included angle35
Inscribed circle0.2500
Insert handNeutral
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code221
Insert styleVBMT
Insert thickness in1/8
Iso insert codeVBMT110304
Iso size code110304
Manufacturer gradeKCU10B
Number of cutting edges2
Relief angle5
Side clearancePositive
Tolerance codeM
Width in1/8
