Kennametal

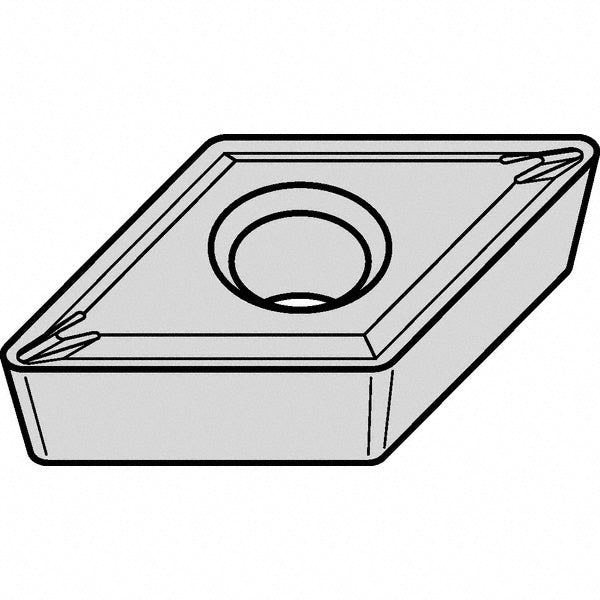

Diamond Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093817
MFR# 7093817
$19.91List $24.30
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7093817 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerLF
Clearance codeC
Coating finishAlTiN
Corner radius in1/64
Included angle55
Insert handNeutral
Insert materialCarbide
Insert shapeDiamond
Insert size code2151
Insert styleDCMT
Insert thickness in3/32
Manufacturer gradeKCU10B
Number of cutting edges2
Relief angle7.000
Tolerance codeM
Width in3/32
