Kennametal

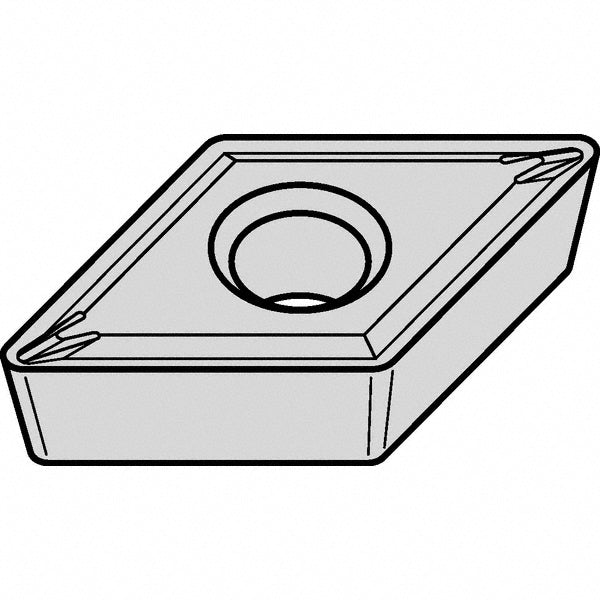

Diamond Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093819
MFR# 7093819
$18.46List $22.54
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7093819 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerLF
Clearance codeC
Coating finishAlTiN
Corner radius in.008
Included angle55
Insert handNeutral
Insert materialCarbide
Insert shapeDiamond
Insert size code32505
Insert styleDCMT
Insert thickness in5/32
Manufacturer gradeKCU10B
Number of cutting edges2
Relief angle7.000
Tolerance codeM
Width in5/32
