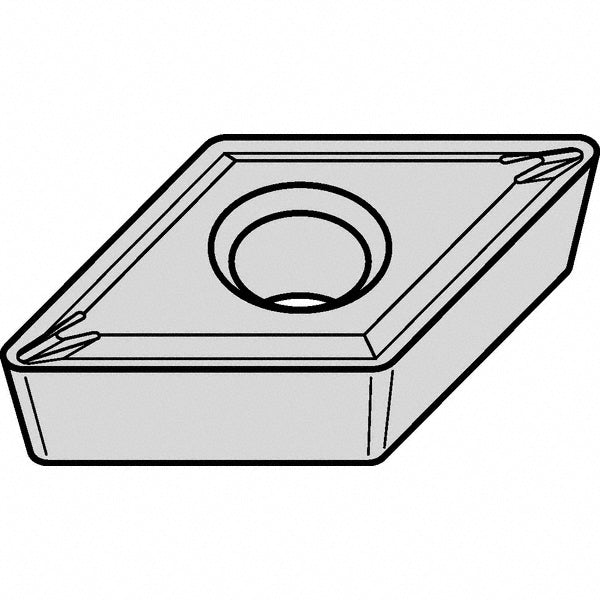

D - Diamond (Rhombic) 55-Deg 0.3750" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093824

Kennametal

D - Diamond (Rhombic) 55-Deg 0.3750" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093824

MFR# 7093824ISO/ANSI# DCMT11T308

$18.46List $22.54 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCU10B
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 7093824 is a carbide indexable insert, grade KCU10B, AlTiN coated.

Specifications

Ansi insert codeDCMT3252
Ansi size code3252
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishAlTiN
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Included angle55
Inscribed circle0.3750
Insert handNeutral
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code3252
Insert styleDCMT
Insert thickness in5/32
Iso insert codeDCMT11T308
Iso size code11T308
Manufacturer gradeKCU10B
Number of cutting edges2
Relief angle7
Side clearancePositive
Tolerance codeM
Width in5/32
