Kennametal

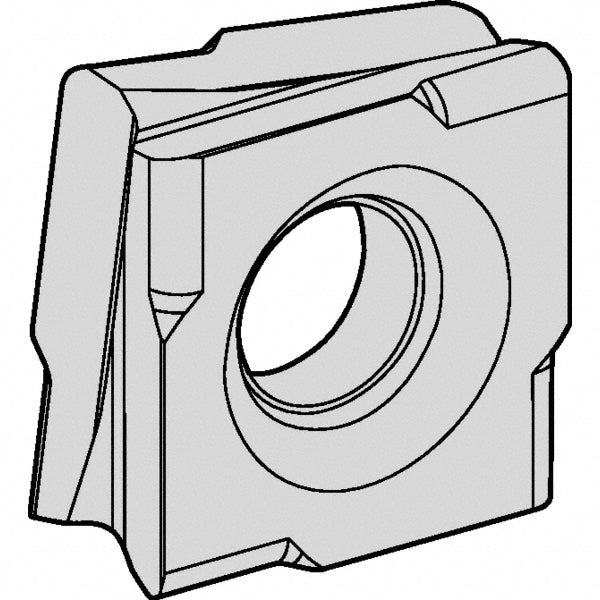

Tangential Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7096235
MFR# 7096235
$37.98List $46.36
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTangential
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7096235 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerRN
Clearance codeC
Coating finishAlTiN
Corner radius in.0197
Included angle6
Insert handRight Hand
Insert materialCarbide
Insert shapeTangential
Insert size code150605
Insert styleC8FIX
Insert thickness0.2598
Manufacturer gradeKCU10B
Number of cutting edges8
Relief angle0.000
Tolerance codeG
Width0.2598
