Kennametal

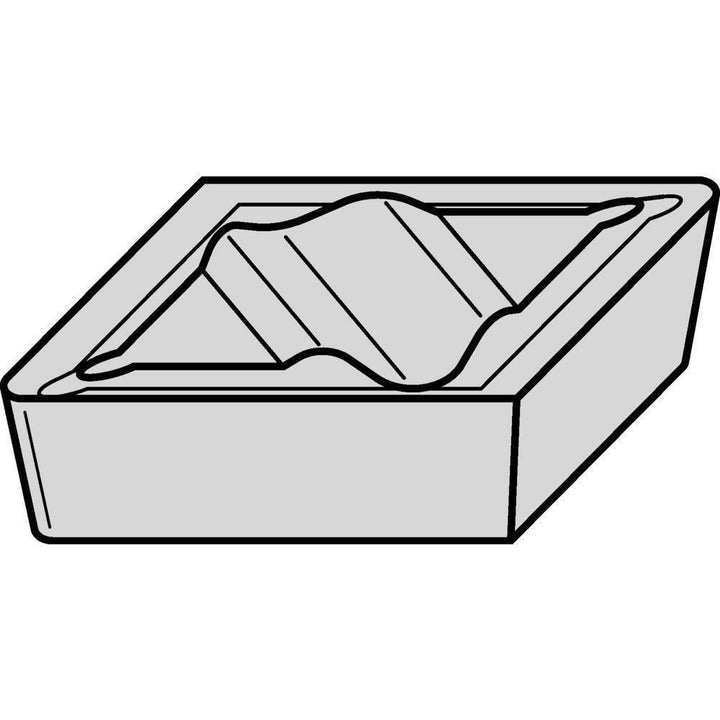

KCGR110304R08 Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7096259
MFR# 7096259ISO/ANSI# KCGR110304R08
$23.78List $29.02
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7096259 is a KCGR110304R08 carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0157
Included angle11.00
Insert handRight Hand
Insert height0.1250
Insert holding methodClamp
Insert materialCarbide
Insert size code51
Insert styleNPGR
Iso codeKCGR110304R08
Manufacturer gradeKCU10B
Maximum depth of cut0.1250
Number of cutting edges2
Rake angle8.000
Relief angle8.000
Thickness in1/8
Width in1/8
