Kennametal

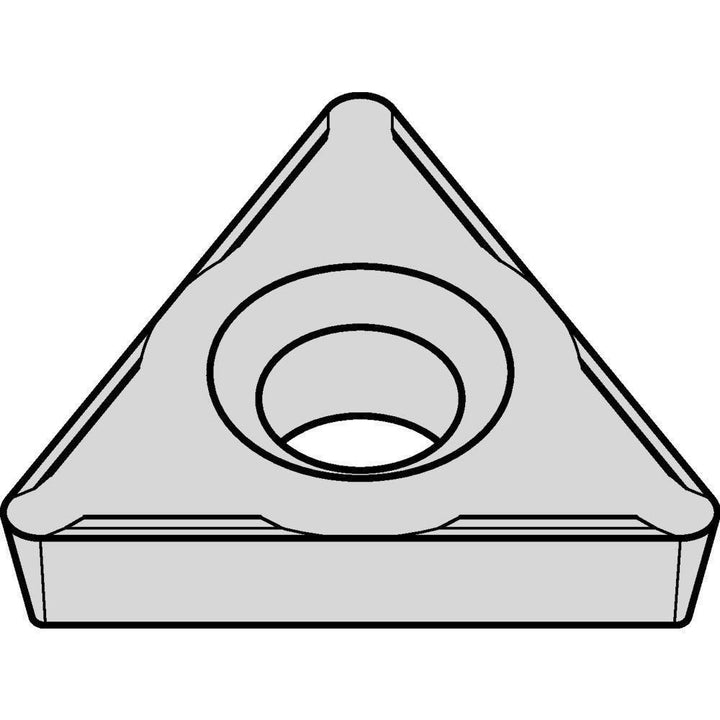

Triangle Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7096415
MFR# 7096415
$26.33List $32.14
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7096415 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerLF
Clearance codeP
Coating finishAlTiN
Corner radius in1/64
Included angle60
Insert handNeutral
Insert materialCarbide
Insert shapeTriangle
Insert size code321
Insert styleTPHH
Insert thickness in1/8
Manufacturer gradeKCU10B
Number of cutting edges3
Relief angle11.000
Tolerance codeH
Width in1/8
